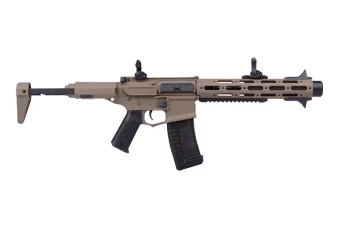

AM-013 carbine replica
A series of the latest Amoeba Airsoft replicas is based on a well-known design of AR type assault rifles, however these replicas have been considerably modified and enriched of many constructional details and interesting technical solutions, which improve not only their functionality but also their look.
The replica's receiver was made of strengthened nylon. Quality of the materials used results in the fact that it is very difficult to recognise on the first sight whether it's plastic or metal. Effective signs of a model, calibre and Amoeba Airsoft's logo were engraved on the receiver. Metal was used to produced the outer barrel, the front-sight, the sound supressor, the stock tube and some small pieces. The pistol grip, properly shaped, covered with scrabrous non-slip texture which improves grip and comfort. The magazine release button was enlarged in order to make its usage easier.
The replica was equipped with a telescopic regulated stock, which allows to adjust its length to individual preferences of a shooter. The battery can be placed inside the stock and tube. Access to a hop-up system regulation is achieved in a standard for this design way - by pulling the charging handle and opening tjhe shell ejector.
AM-013 was equipped with a modular system of the front grip, which allows to adjust the replica to individual preferences of the shooter. 22mm RIS rails' segments may be mounted to the replica in many positions thanks to sockets located around the grip. 4 such segments together with mantling screws were included to the set. The all-purpose 22mm RIS rails are situated on the front grip and on the top of the receiver, thanks to which the replica may be fitted with a wide range of additional accessories, from a scope to lighting and tactical grips. The rifle has iron sights - flip-up type aming devices mounted on the RIS rail.
Amoeba Airsoft's replicas make it possible to replace the spring quickly, with no necessity of dismantling the gearbox. The heart of the replica is a bit strengthened modified gearbox v. 2, which possesses an integrated EFCS module - Electronic Firing Control System. It controls the operation of the trigger mechanism, resulting in a very smooth work and shorter engine reaction. A standard trigger swich assembly was replaced by an electronic system. The EFCS also has a built-in MOSFET system.
EFCS considerably increases the mechanism's life span and the whole replica as well and it allows to use high-voltage batteries, including LiPo. If we buy an outerdedicated EFCS programmer, we may receive a possibily to select fire modes as well as the burst mode (a three BBs series).
A magazine included in the set is a plastic hi-cap of the capacity of 300 BBs. The magazine is covered with scrabrous non-slip texture, it also has a folding pull-mag type grip.
The set does not include a battery and a charger.
The set includes:
- replica
- magazine
- manual
| Kleur | Bruin |
Batterij inbegrepen Akumulator NiCd cechuje się dużą wydajnością prądową, ale występuje w nich uciążliwy efekt pamięci. Powinny być rozładowywane i ładowane w pełnych cyklach, tj. zaleca się pełne rozładowanie, a po rozładowaniu należy akumulator niezwłocznie naładować nie pozostawiając go na dłużej w stanie rozładowanym. Akumulatory NiMH charakteryzują się szybszym czasem samorozładowania i krótszą żywotnością - z drugiej strony, osiągają one ok. 30% więcej pojemności. | Nee |
| Blow Back Blow Back (BB) jest to system imitujący pracę zamka (odrzut podczas wystrzału), który spotykany jest najczęściej w modelach gazowych pistoletów i karabinów, jednakże co raz częściej pojawia się on także w replikach elektrycznych. Dzięki temu, strzelanie staje się bardziej zbliżone do ostrych odpowiedników, co zwiększa realizm podczas rozgrywek. Za każdym naciśnięciem za spust, replice towarzyszy tzw. "kopnięcie", czyli odrzut spowodowany zwrotnym ruchem zamka. | Nee |
| Product lengte [cm] | 73.50 |
| Product gewicht [g] | 2260 |
| Voortstuwing | Electrisch |
| Materiał | Metal Plastic |
| Mondingssnelheid [FPS] Jest to prędkość kulki, w momencie opuszczenia przez nią lufy repliki. Mierzona jest w FPS (stopy na sekundę). 1 FPS = 0,3 m/s 1 J = 99 m/s 1 J = 326,7 FPS | 300 |
| Vuur modes | Full-auto Semi-auto |
| Gearbox versie Oznaczenia v2, v3, v6 nie oznaczają stopnia zaawansowania mechanizmu ,a jedynie kształt zastosowanego szkieletu, który dobierany jest przez producenta w zależności od możliwości korpusu repliki. Przykładowo, repliki z rodziny M4/M16, MP5, mają gearbox v2, natomiast rodzina AK czy G36 gearbox v3. | Gearbox v2 |
