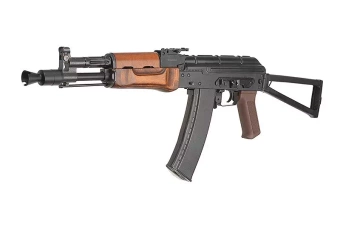

CA017M-1 Assault Rifle Replica

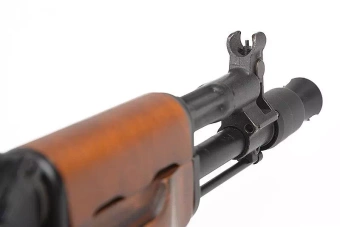

A replica manufactured by Classic Army which is characteristic for its very good quality craftsmanship - both on the inside and outside. The replica was made practically entirely from steel and wood. This allowed it to imitate the live firearm original as closely as possible, also in terms of size and construction details. Steel parts include the receiver, trigger guard, gas pipe cap, rear sight base, front sight base, external barrel, stock, dust cover, etc. The pistol grip was made from polymer, while the cradle was made from wood - exactly as in the live firearm original.
The inside of the replica is truly professional. Features low-resistance wiring, MOSFET module for highest energy efficiency and additional reinforcements for all circuits vulnerable to electric stress and temperature. Access to the Hop-Up chamber is gained in a traditional way - after pulling back the charging handle. On the right side of the receiver there is a winged fire mode selector and a safety.
The heart of the replica constitutes a durable GB V3, which together with a 6.03 mm in diameter and 364 mm long barrel allows it to achieve a muzzle velocity of ~400 FPS and very good accuracy. The gearbox skeleton that holds very durable steel gears was made from metal. In order to improve the replicas reliability it was equipped with 9 mm bearings.
The replica comes with a polymer, Hi-Cap magazine with a capacity of up to 500 BBs. The replica is powered by a stick battery (not included in the set) located underneath the dust cover. The set includes a cover with Classic Army insignia.
The set includes:
- replica
- magazine
- cleaning rod
- cover
- User’s manual
| Bearings diameter [mm] | 9 |
| Colour | Others |
| Product length [cm] | 82 |
| Product weight [g] | 3065 |
| Power supply | Electric |
| Material | Wood Metal |
Muzzle velocity [FPS] It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second). 1 FPS = 0,3 m/s 1 J = 99 m/s 1 J = 326,7 FPS | 400 |
| Fire mode | Full-auto Semi-auto |
| Gearbox version Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3. | Gearbox v3 |
| Hop-Up Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy). | Yes |
