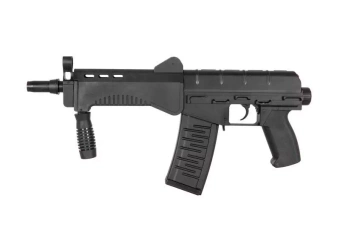

AY-A0024B carbine replica
The reinforced polymer is made of a front grip and pistol grip - in matt black. Almost the rest of the replica was made from metal. The whole body is made of metal, the lid of the castle chamber, one-piece outer barrel. The replica has a set of adjustable, mechanical sights, but we can easily equip it with an optical sight thanks to the dovetail type rail mounted on the side of the body.
The dummy lock/reloading handle is also made of metal - after pulling it we gain access to the hop-up adjustment knob. On the right side of the body, there is a wing fire mode selector, very similar (although slightly shorter) to the one used in AK type replicas. We have the possibility of single and continuous fire.
The place for the LiPo battery is inside the front grip.
What can we find inside the replica? At its heart is a v.3 gearbox with an AK trigger assembly. The gearbox is equipped with 7mm steel ball bearings on which a set of steel gears are mounted. The nozzle is also AK standard, the piston is made of strong nylon which has steel gears. The whole drives a short-medium torque motor. The M120 mainspring used in the factory allows for a muzzle velocity of ~ 420 FPS. As a result, a strong, well-folded mechanism based on high-quality parts was obtained, which is also a great basis for possible power and strength tuning.
The replica is delivered complete with a hi-cap magazine with a capacity of 300 balls, made of black polymer material.
WARNING: The telescope shown in the illustrative photo is not included in the set.
The set includes:
Replika karabinu szturmowego AY-A0024B
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
|Type of fire|
|Diameter of bearings in GB [mm]|
|Magazine capacity [pcs]|
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
plastic + metal
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
