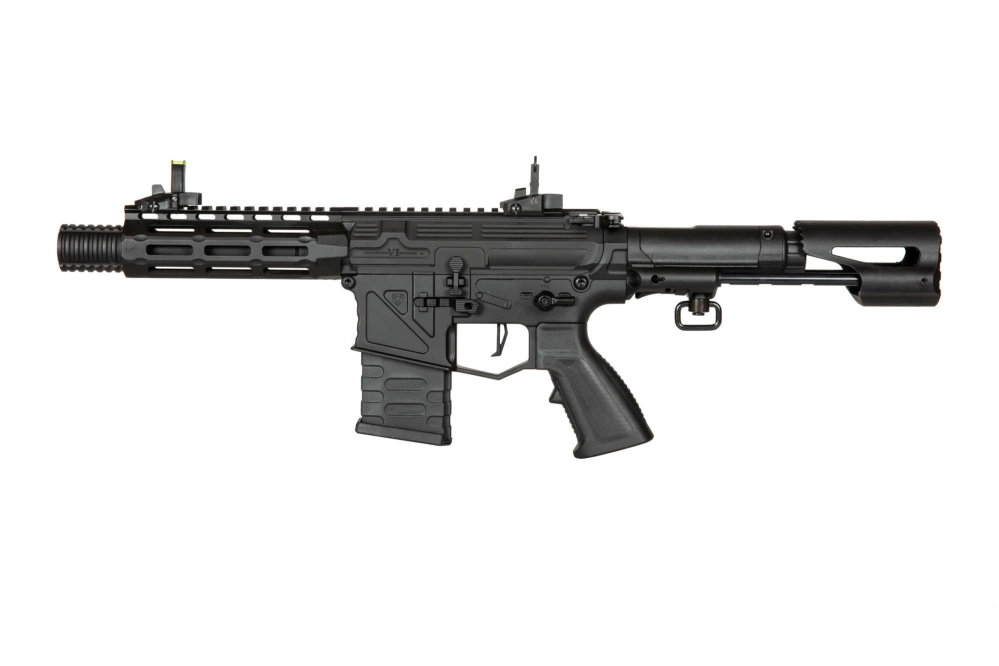

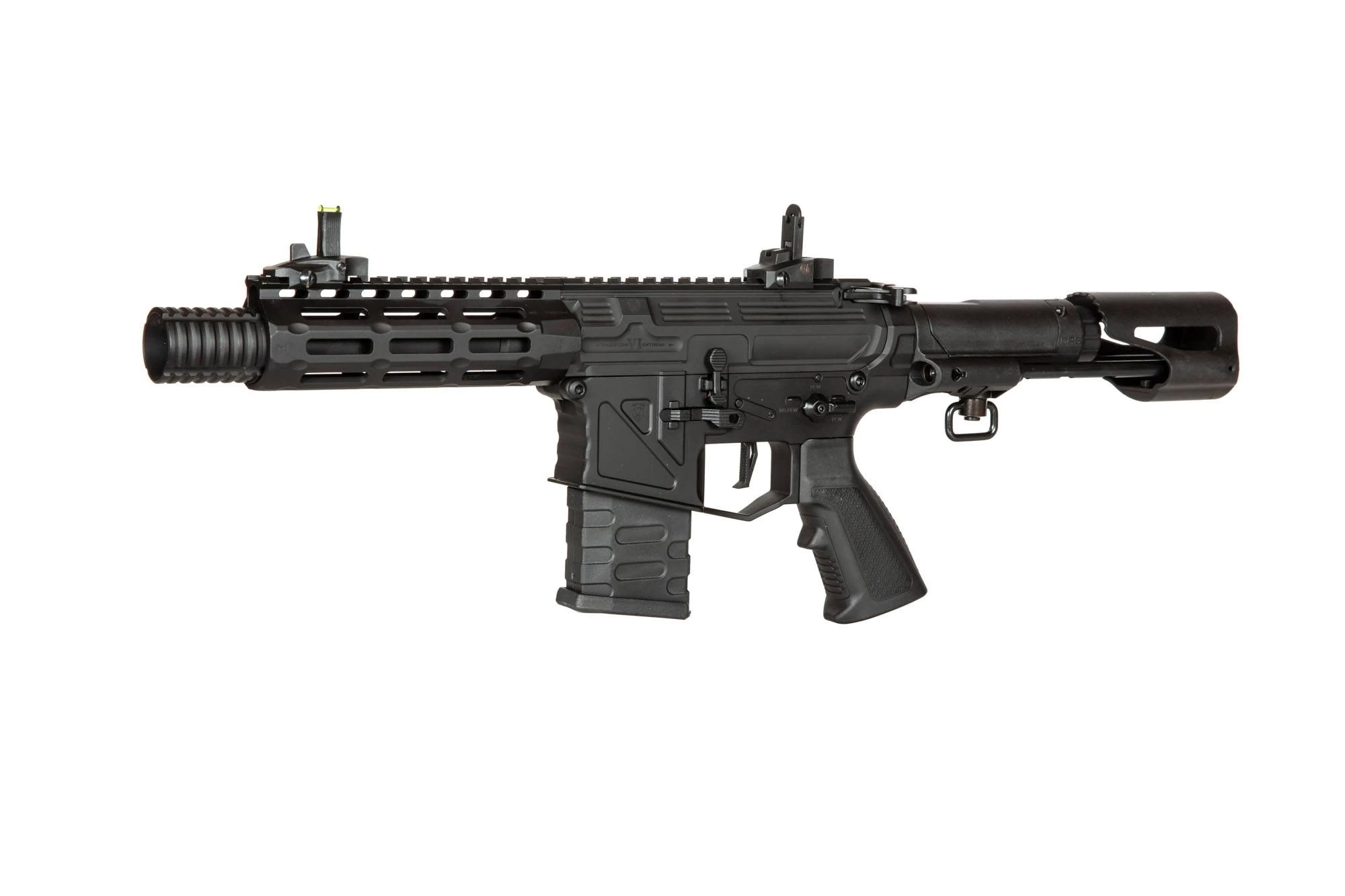

PER706 Phantom Extremis eMK VI Rifle Replica
The rifle replica manufactured by APS is an innovative conceptual design. The rifle is built on the basis of a construction typical of the family of popular American rifles and is equipped with the modular M-Lok rail assembly which is becoming more and more popular

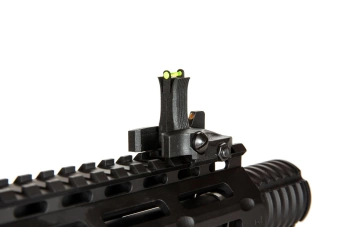

The RIS 22mm rail allows for the installation of various types of optical sights. The set includes a set of folding, mechanical flip-up sights. The replica is suitable for right and left-handed users thanks to the manipulators and levers having a double-sided configuration. In addition, the rifle has the proprietary APS Phantom Overload pistol grip with replaceable, non-slip EVA linings, which has a shock absorption system generated by the motor, increasing its efficiency.

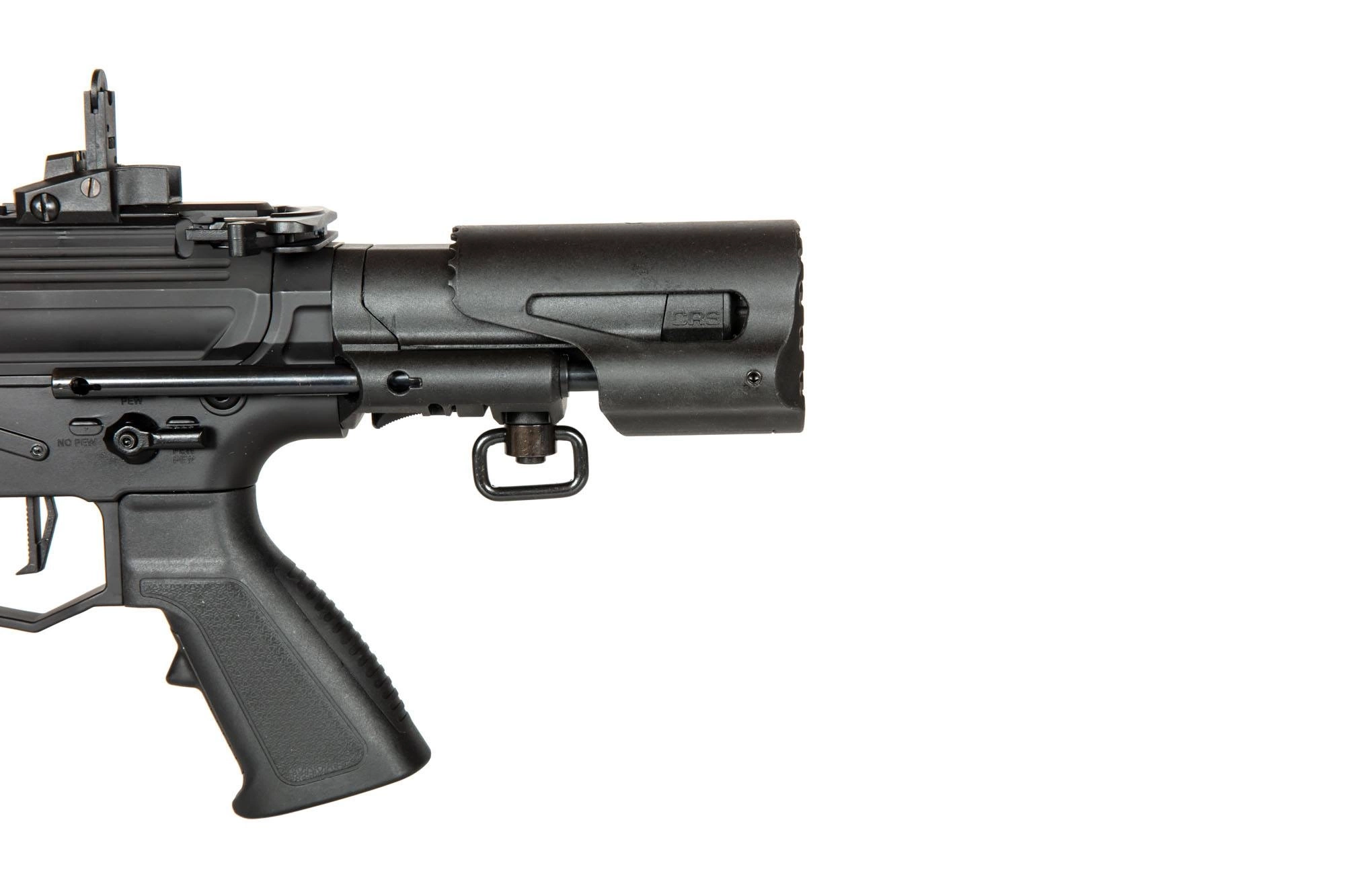

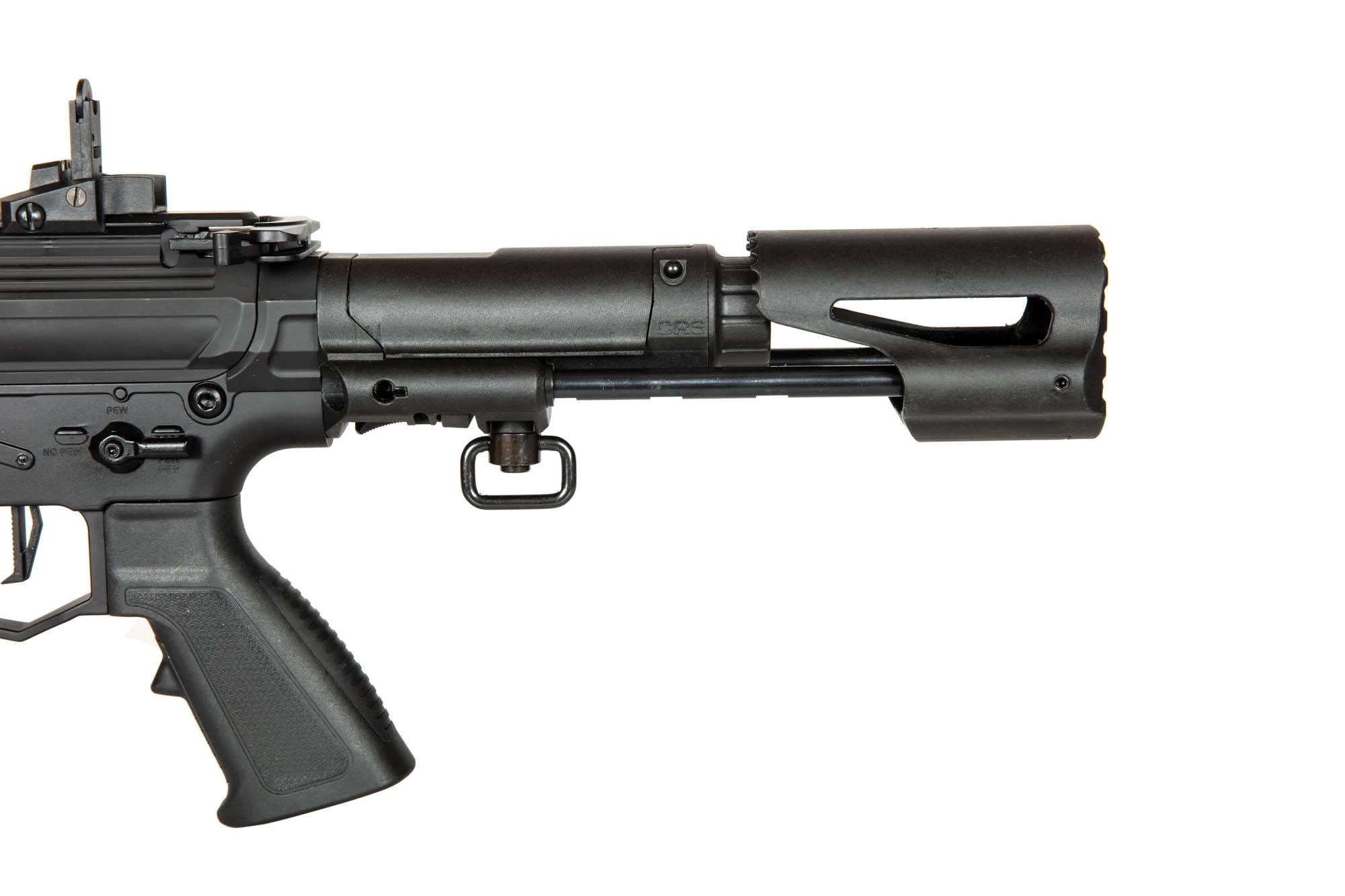

The design of the body and the front rail give the replica a modern and aggressive look. The front Evolution Tech 6.0 rail is made in the M-Lok system, which allows for the adjustment of the rails according to the user's preferences. The replica also has a custom, enlarged reloading handle. The replica is equipped with an adjustable CRS stock with a room for a 117 x 32 x 31mm battery. At the end of the barrel we can find an amplifier called "Sound Blaster Type B", which increases the sound effects while firing the replica.
The heart of the replica is the V2 gearbox with a quick spring change system, from the latest eSilver Edge series with the High Torque motor. The cylinder and the precision inner barrel with a diameter of 6.04 mm are made out of stainless steel. Housed within the replica is the SDU 2.0 chip which is fully programmable. The user is able to change his wherever and at any time he wishes. No additional external devices are needed. To use the chip, press the button located on the bottom of the front part of the gearbox frame. The button is located in the magazine slot. When pressed and held, the red LED should light up. The button should be held down until the LED blinks twice. We have one of five modes available to program:
Mode 1: Safe-Semi-Auto (factory setting)
Mode 2: Safe-Semi-Burst (3)
Mode 3: Safe-Burst (2) -Auto
Mode 4: Safe-Burst (3) -Auto
Mode 5: Safe-Burst(3)-Burst(9)
Double pressing the button or disconnecting the battery will reset the system to factory settings.
The replica comes with a plastic hi-cap magazine with a capacity of 190 BBs
The set does not include a battery or a charger.

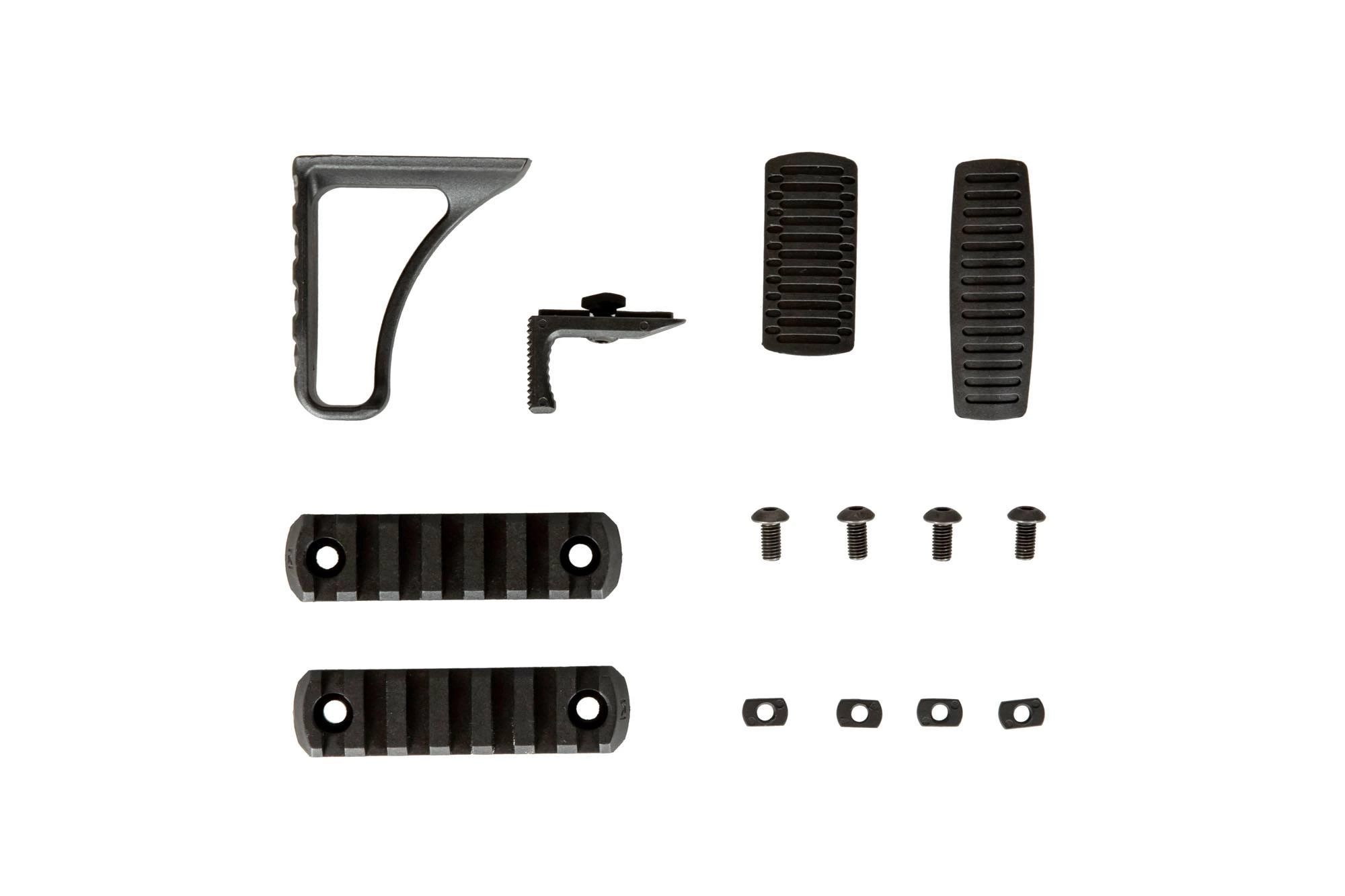

- replica
- magazine
- 2 additional pistol grip linings
- 2 RIS rails
NiMH, Li-Po and Li-Ion batteries charging tips:
Gearbox version Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3. | v2 Gearbox |
| Type of fire | Single, auto |
| Diameter of bearings in GB [mm] | 8mm |
| Length [mm] | 530-625 |
| Inner barrel length [mm] | 180 |
| Weight [g] | 2245 |
| Magazine type | Hi-Cap magazine |
| Magazine capacity [pcs] | 190 |
| Hop-Up Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy). | Yes |
| Blow Back Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting. | No |
| Automatic electric guns | Assault rifles/Carbines |
| Made of | Metal + tworzywo sztuczne |
| Battery included NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state. | No |
| Barrel thread type | 14mm CCW |
| Quick Spring Change System | Jest |
| Plug Type | Tamiya mini |
| MOSFET | Yes |
| Colour | Black |
| Velocity [FPS] It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second). 1 FPS = 0,3 m/s 1 J = 99 m/s 1 J = 326,7 FPS | ~330 |
