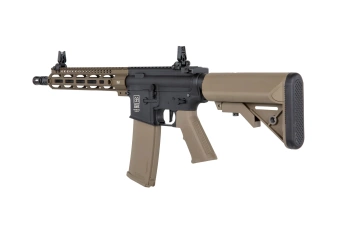

SA-C20 CORE™ HALairsoft rifle
Specna Arms presents the CORE™ line with theHAL™ chip
The trigger control system supports the replica's performance, and allows programming of functions easily using the trigger and selector.
HAL™ chip features:
-trigger detection based on magnetic sensors and Hall effect
-active brake
-binary trigger
-adjustable trigger sensitivity (5 levels from 20 to 100%)
-adjustable pre-cocking (6 levels)
-aUTO programmable fire modes (full auto, semi, 3-rd burst, 5-rd burst)
-sEMI programmable fire modes (semi, binary, AUG, sniper)
-easy programming via trigger
-low battery alarm
-compatible with brushless motors
**The AUTO function fires a 3 round burst first then fires Full Auto.

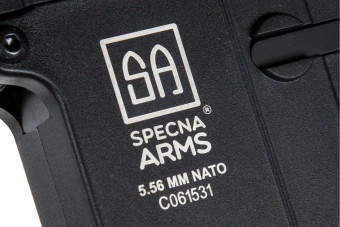

The body, slide and battery compartment of the enlarged SF buttstock, foregrip and pistol grip are made of nylon fibre-reinforced polymer polymer. Other components, such as the barrel, flame suppressor, enlarged reloading handle and tactical sling assembly are made of metal (all screws, pins, shell ejection window and dummy lock are made of steel). Markings and serial number have been applied to the barrel.
The replica is very well-fitted, the user will not experience any play between the lower and upper parts of the body. The use of lightweight polymer body allowed to reduce the weight, which makes it perfect for dynamic games or prolonged milslims. Furthermore, the fibreglass reinforcement also makes the body stronger than polymer and metal bodies.
The replica uses the quick spring change system, ESA™. This allows quick and efficient adjustment of the replica's power to the conditions expected on the field of play without the need for access to a workshop or a number of specialised tools - simply unscrew the butt guide to reveal access to exchange the spring without having to pull out or disassemble the gearbox.
The advantages of the ESA™ system are difficult to overstate. In view of the arrangements within the environments themselves, this system guarantees the user considerable possibilities and a great deal of freedom. The ESA™ system makes it possible, with a minimum of time, to change the mainspring and thus to adapt the replica's discharge speed to the area of play, so as to guarantee an ideal compromise between the effectiveness of fire control and the safety of oneself and other players.
The replica has been fully adapted to work with LiPo and LiFe type batteries. With a base initial discharge velocity of ~380 FPS guaranteed by the pre-installed mainspring, the replica is perfectly suited for medium range operations. An M90-type spring is also included, allowing the initial velocity to be reduced to ~310 FPS, making the replica perfectly suited for short-range or indoor operations.
The gearbox conceals 8-mm slide bearings and the supported steel gears. The system is secured by four anti-reverse pawls. The lightweight polycarbonate piston is fitted with a full steel bar for added strength. A type 2 cylinder and steel cut-off lever are also used here, and the strength of the parts allows them to work with M140 springs.
The finely crafted Rotary Hop-Up chamber works perfectly with the high quality 6.03mm precision barrel. The use of a precision barrel positively affects the range and accuracy of the replica. It is important to remember to use high quality 6mm ammunition.

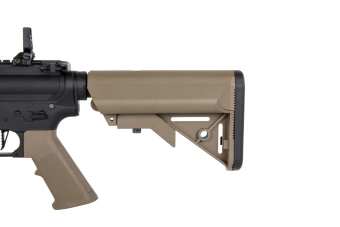

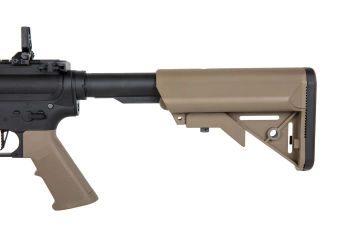

The replica is equipped with a 22mm dorsal RIS rail and an adjustable buttstock. On the upper RIS rail, a classic transport grip with a sight has been fitted. Thanks to an extendable buttstock finished with a non-slip textured footplate, it is possible to adjust the length of the replica to the shooter's build and preferences. The standard flame silencer is mounted on a 14-mm left-hand thread, which makes it possible to attach a sound suppressor in its place.
The kit includes an S-MAG hi-cap magazine with a capacity of up to 380 rounds. The S-MAG is an exclusive polymer magazine designed by Specna Arms. What draws attention is the distinctive texture composed of Specna Arms logos. The S-mag ensures trouble-free ball feeding, even at high ROF.
Package include:
- S-Mag Hi-Cap Magazine
- QC certificate
- Deans adapter - small Tamyia
- GATE X-ASR Diagnostics Card
- Instruction
- Replica
- M90 additional spring
Package exclude:
- The set does not include the battery nor charger
NOTE!!!
When starting the replica for the first time, immediately after connecting the batteries, hold the trigger in SAFE mode for about 5 seconds to activate the HAL™ module
Battery included NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state. | No |
| Bearings diameter [mm] | 8 |
| Colour | Half-Tan |
| Product length [cm] | 77.50 |
| Product weight [g] | 2500 |
| Power supply | Electric |
| Material | Metal Plastic |
| Muzzle velocity [FPS] It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second). 1 FPS = 0,3 m/s 1 J = 99 m/s 1 J = 326,7 FPS | 380 |
| Fire mode | Full-auto Semi-auto |
| Gearbox version Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3. | Gearbox v2 |
