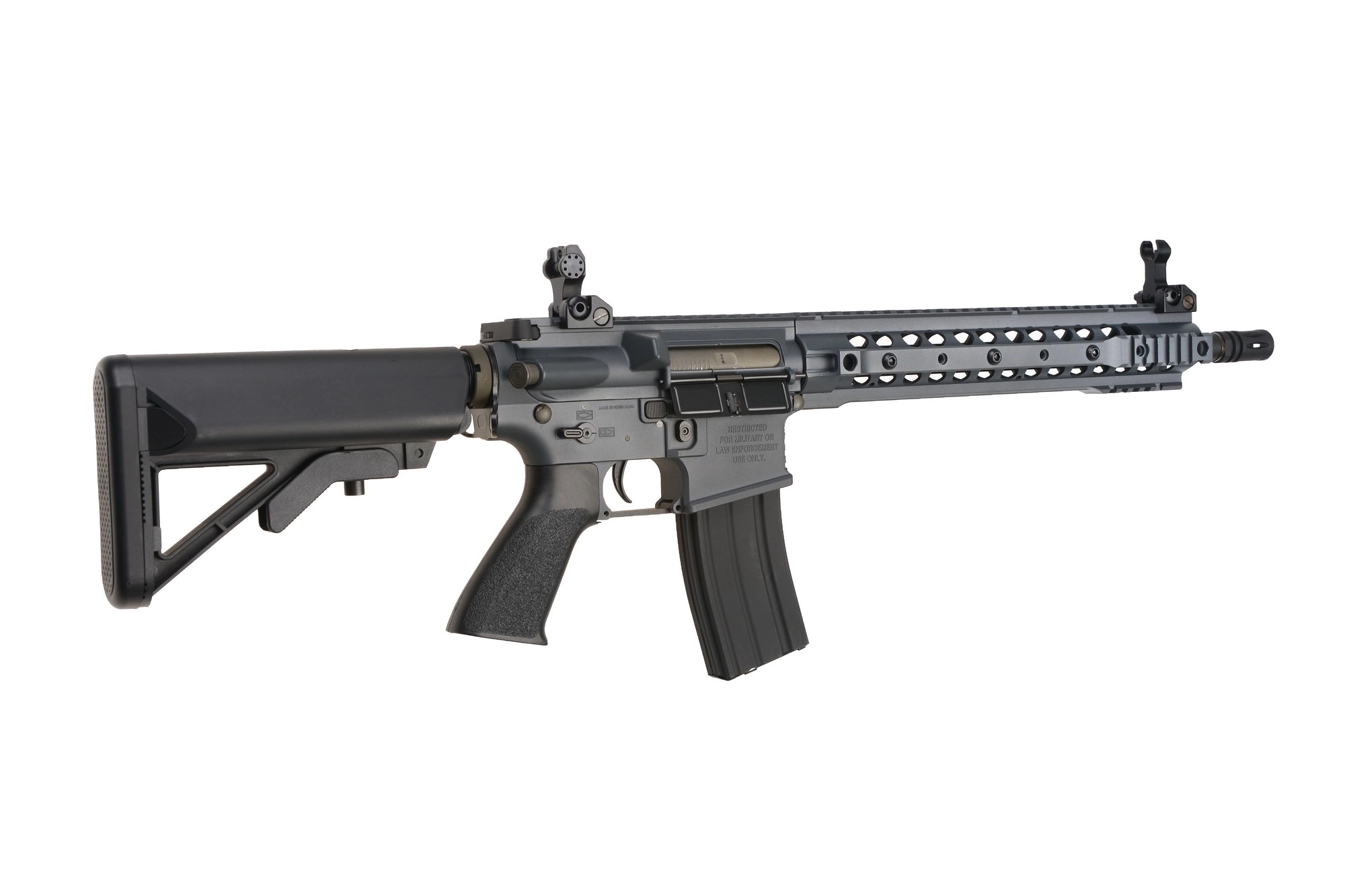

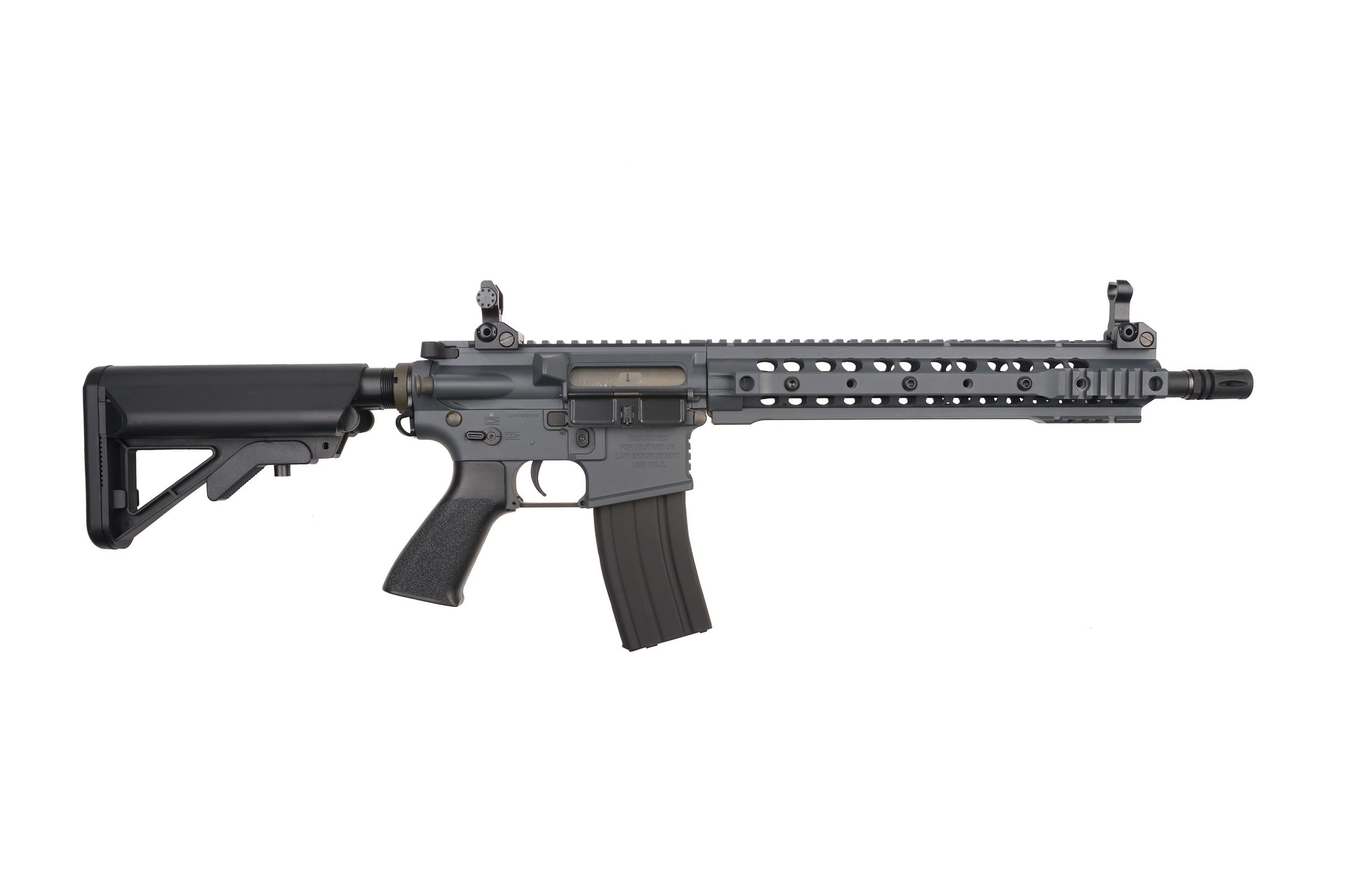

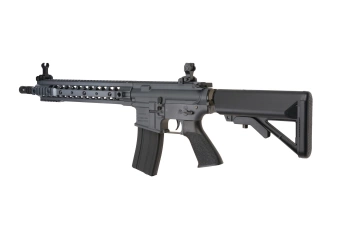

CA101M (US Version) Carbine Replica
Classic Army CA101M replica is based on an M4 system with a 12” modular rail and a 14.5” external barrel. The monolithic profile of the rail system features a standard configuration in the form of a top rail running along the entire length of the replica. This allows to attach a wide array of optical sight or other accessories. The sides and bottom of the hand guard feature short RIS rails that allow for the attachment of various additional accessories. Due to short length of the rails the replica is relatively light in comparison to its sisters. The set includes additional 3 short RIS rails that the user can attach to the hand guard in order to further customize the replica to his own individual preferences. The handguard and the receiver are made of metal.

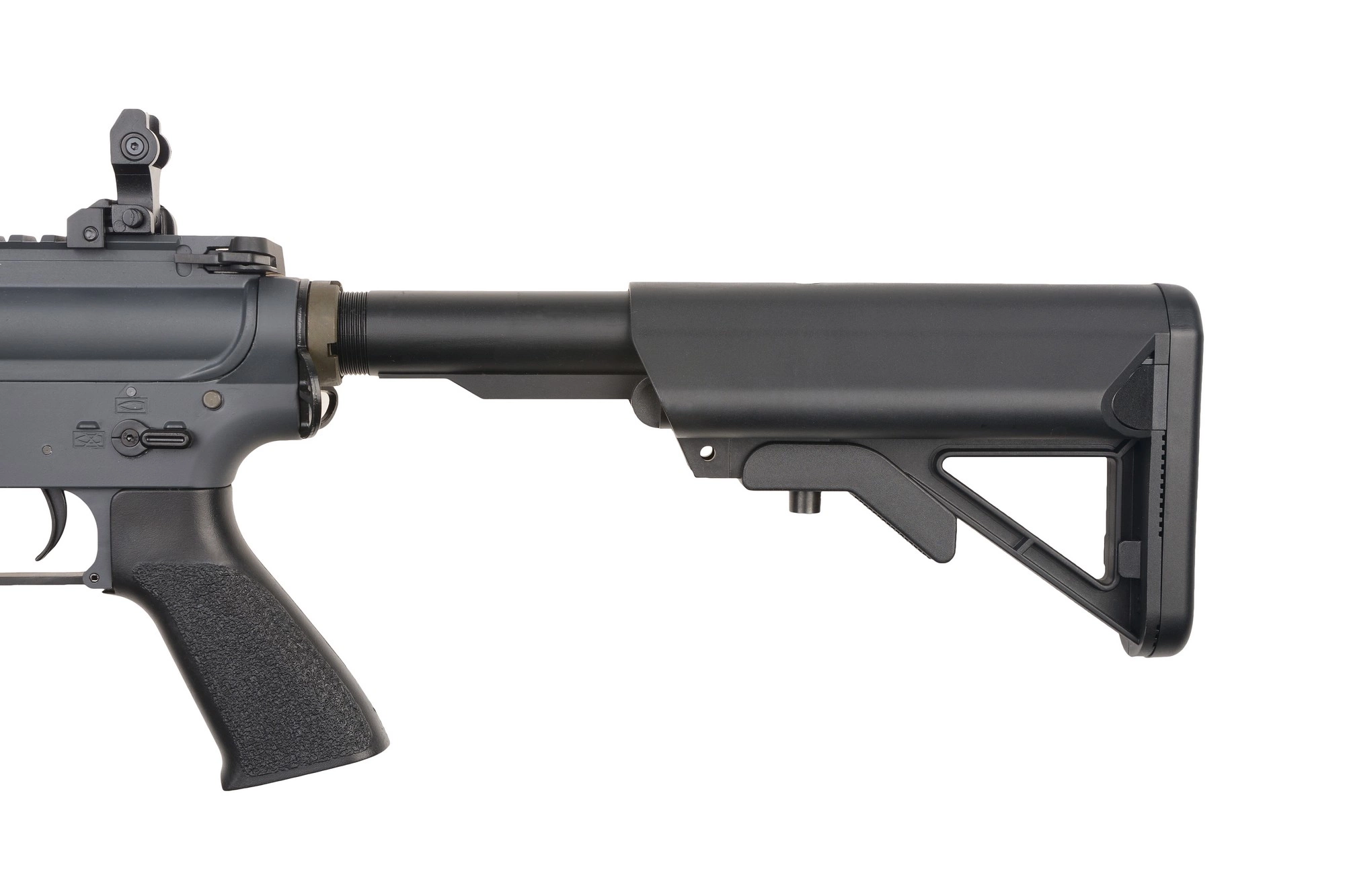

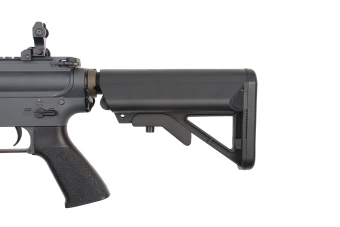

The replica features an ergonomic grip, flip-up iron sights as well as telescopic stock with length adjustment. Every replica has an individual serial number, which makes it unique.
On the inside, the replica has 9 mm bearings, steel 21:1 ratio gears and wiring protected by a MOSFET module. It has low-resistance wiring, silver-plated cables and non-overheating DEANS connectors, but the set also includes a Tamiya Small adapter. All this makes the replica compatible with Li-Po battery packs. The replica has a 6.03 mm caliber internal barrel that provides great focus of shots. Quick Spring Change System allows for spring replacement without having to disassemble the entire gearbox.
The replica comes with a metal Hi-Cap magazine with a capacity of 300 BBs. The replica is powered by a double stick or split LiPo battery (not included in the set) located in a SF stock tube.
ATTENTION! The set does not include a battery or a charger.
The set includes:
- replica
- magazine
- cleaning rod
- User’s manual
NiMH, Li-Po and Li-Ion batteries charging tips:
| Name | Replika karabinka CA101M (wersja US) |
Gearbox version Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3. | v2 Gearbox |
| Fire mode | Single, auto |
| Bearing diameter in GB [mm] | 9 |
| Length [mm] | 680-850 |
| Inner barrel length [mm]. | 363 |
| Weight [g] | 2880 |
| Magazine type | Hi-Cap magazine |
| Magazine capacity [pcs.] | 300 |
| Hop-Up Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy). | Yes |
| Blow Back Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting. | No |
| Made of | plastic + metal |
| Battery included NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state. | No |
| Spring quick replacement system | YES |
| Exit speed [FPS] It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second). 1 FPS = 0,3 m/s 1 J = 99 m/s 1 J = 326,7 FPS | ~370 |
