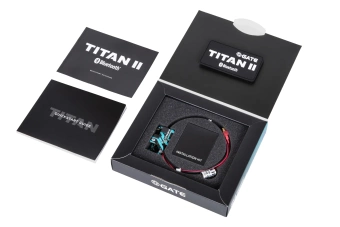

The GATE TITAN II Bluetooth® V2 Expert (HPA Rear Wired) Controller Kit
TITAN II Bluetooth® V2 is GATE's flagship electronic chip replacement for the electronic contact unit (ETU) by GATE. Built-in Bluetooth 5.2 technology gives direct access to the replica's settings, telemetry and the ability to use the with smartwatches, STATUS and other GATE devices.
Optical trigger sensor allows you to set the trigger "to the touch" with a precision of up to 50 levels of sensitivity for the first millimetre of trigger movement, while retaining the advantages of the sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready to connect additional accessories such as bolt-catch, sensor magazine, hop-up chamber ball illuminator and others.
Technical specifications:
Voltage rating: 3.75-17 VDC
Rated current: 30 A
Maximum no-load current consumption: 27 mA
Unloaded current consumption: 100 µA
Communications: Bluetooth® 5.2 Low Energy
Dimensions (length x width x thickness): 47.2 mm x 28.9 mm x 14.5 mm
Weight of finished product: 28.2g
Operating temperature range: min. -15° C, max. +50° C
Relative operating humidity: ≤ 80%
Firmware version EXPERT.
Version with revised wiring, prepared for single and double valve HPA motors.
| Colour | Black&blue |
| Made for | Replicas z gearboxem V2 |
| Product weight [g] | 28 |
