GATE TITAN V2 Advanced Specna Arms EDGE Controller Set (Rear Wired)

The GATE TITAN V2 Advanced Specna EDGE is an electronic Drop-In MOSFET controller designed for airsoft replicas equipped with a V2 gearbox. The unit allows users to configure the replica's operation, including trigger sensitivity, firing modes, Pre-Cocking, and rate of fire.

The controller offered is sourced from the Specna Arms EDGE version and features rear wiring.

TITAN V2 Controller Functions

• Trigger Sensitivity Adjustment – allows the replica's response to trigger input to be customized

• Pre-Cocking – pre-tensions the main spring to reduce trigger response time

• Configurable Fire Selector – allows the available firing modes to be customized

• BURST – programmable burst-fire mode

• ROF Control – rate-of-fire adjustment

• Sniper Delay – programmable delay between consecutive shots

• Cycle Detection – monitors the completion of the gearbox operating cycle

• AUG Mode – allows two trigger sensitivity levels to be set for semi-automatic and fully automatic fire

• Low battery warning

• Battery protection against damage

Configurable Fire Selector

The TITAN V2 uses two fire selector sensors, allowing firing modes to be configured.

The unit supports, among others:

• SAFE – prevents firing

• SEMI – semi-automatic fire

• AUTO – fully automatic fire

• BURST – programmable burst fire

Fire selector configuration allows the replica's operation to be tailored to user preferences.

Cycle Detection

The TITAN V2 detects the position of the gearbox mechanism, allowing the end of each operating cycle to be controlled.

This enables:

• Automatic BURST control without manually setting burst duration

• Control over the mechanism during Pre-Cocking

• Completion of the full gearbox cycle when Pre-Cocking is disabled

Pre-Cocking

The Pre-Cocking function pre-tensions the main spring, reducing the time between pulling the trigger and firing a shot.

It allows the replica's operating characteristics to be adjusted, particularly for faster trigger response.

Note: Using Pre-Cocking, especially with high-powered main springs, may accelerate wear on the replica's internal components.

BURST

The BURST function allows users to program a series of shots fired with a single trigger pull.

Thanks to cycle detection, there is no need to manually set the duration of the burst.

This feature is useful during MILSIM games and when using Real-Cap and Low-Cap magazines.

ROF Control

The ROF Control function allows the replica's rate of fire to be reduced without replacing mechanical components.

It allows firing frequency to be adjusted to user preferences and gameplay requirements.

Sniper Delay

The Sniper Delay function allows a delay to be set between consecutive shots in SEMI mode.

It can simulate the time needed for reloading or recoil compensation.

Product Features

• Electronic Drop-In MOSFET controller

• Designed for AEG replicas with a V2 gearbox

• Specna Arms EDGE version

• Rear-wired configuration

• Adjustable trigger sensitivity

• Configurable fire selector

• SEMI, AUTO, and BURST firing modes

• Programmable BURST mode

• Pre-Cocking function

• Full gearbox cycle detection

• ROF Control rate-of-fire adjustment

• Sniper Delay function

• AUG Mode with two trigger sensitivity levels

• Low battery warning

• Battery protection against damage

A complete description of the functions is available on the manufacturer's website: http://www.gatee.eu/

User Manual:
http://gatee.eu/images/gate/instrukcje/titan-pl.pdf

Set Contents

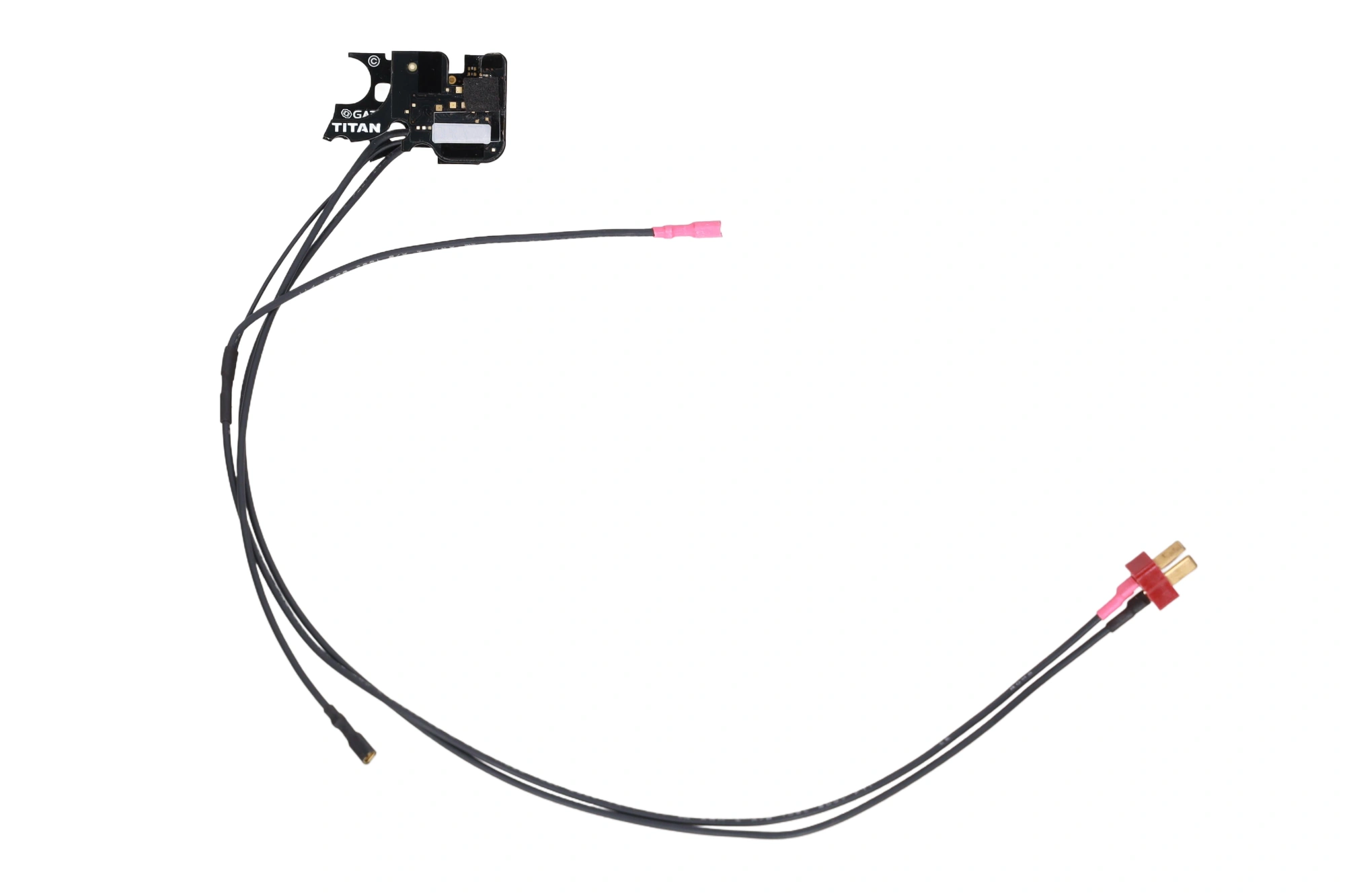

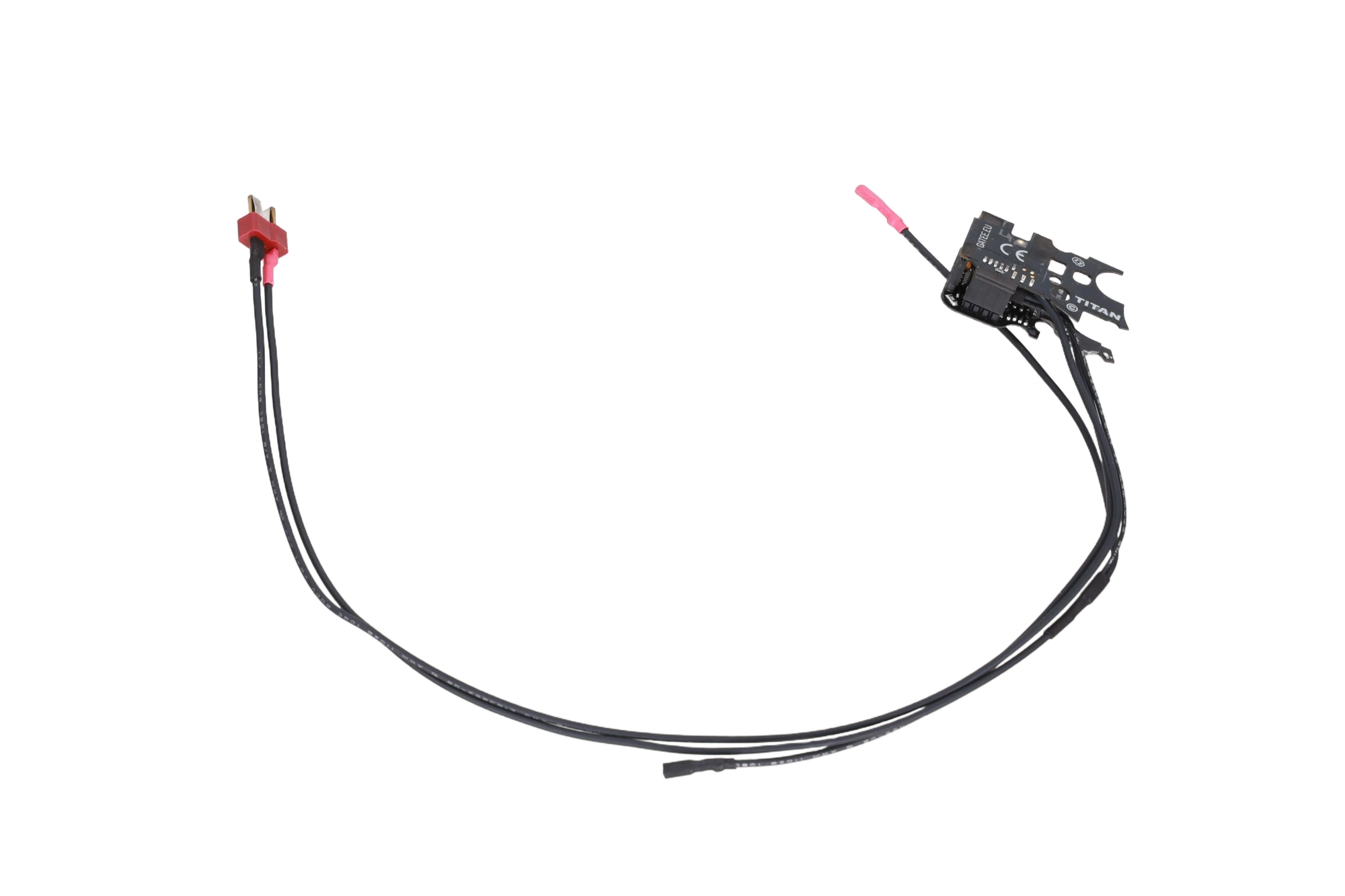

• GATE TITAN V2 Advanced Specna EDGE module with rear wiring and connector

The set does not include additional installation parts or packaging.
