SA-C09 CORE™ X-ASR™ Carbine Replica
Specna Arms meets the expectations of clients by presenting the CORE™ line of products - an exceptional series of replicas that introduces a new quality to the market. An attractive price in combination with an innovative spring change system as well as high-quality materials make this replica suitable for beginners and seasoned airsoft players alike.
The receiver, stock slide and an SF stock that holds the battery as well as the pistol grip were made of nylon fiber reinforced polymer. Remaining components such as the barrel, RIS handguard, flash hider, enlarged charging handle and tactical sling swivels were made of metal (parts made of steel include the screws, pins, shell ejection window and mock bolt carrier). The receiver bears markings and a serial number.
The replica’s parts are aligned very well and the User will not experience any loose spots between the lower and upper receiver. The use of a light polymer receiver allowed for a reduced weight, which makes it very suitable for dynamic games or long-lasting mil-sims. What’s more, fiberglass reinforcement makes the receiver also more durable than polymer and metal receivers.
The replica features a ESA™ Quick Spring Change System. Due to that system, it is possible to rapidly and quickly adapt the power of the replica to the conditions expected on the playing field without the necessity to have the access to a workshop or a set of special tools - all that is required is to remove the stock slide in order to gain access to the spring so that it can be removed without having to pull out or disassemble the gearbox.
The advantages of ESA™ system are hard to overstate. In the light of the current internal regulations inside various groups, the system guarantees the User a varied set of possibilities and plenty of freedom. ESA™ system allows with a minimal amount of time to exchange the main spring, thus to customize the muzzle velocity towards the area of the game in such a way so as to guarantee an ideal compromise between the effectiveness of fire and the safety for the User himself as well as other participants.
The replica is fully compatible with LiPo and LiFe batteries. Due to a base muzzle velocity of ~380 FPS provided by the main spring installed by default by the manufacturer, the replica is perfect for operating on a medium range. The set also includes an M90 spring, which allows reducing the muzzle velocity to ~310 FPS and as a result to adapt the replica for close-ranged and indoor operations.
The gearbox contains 8 mm slide bearings as well as shimmed steel gears based on them. The system is secured with four anti-reversal latches. A light, made of polycarbonate polymer piston is equipped with a full steel strip, in order to increase its durability. Also, implemented were a type 0 cylinder and a steel circuit-breaker, as well as a precise rotary Hop-Up chamber. The durability of parts allows for the cooperation with M140 springs.
The precisely-made rotary type Hop-Up chamber perfectly fit with high quality 6,03 precision barrel. The use of precision barrel has a positive effect on the range and accuracy of the replica.

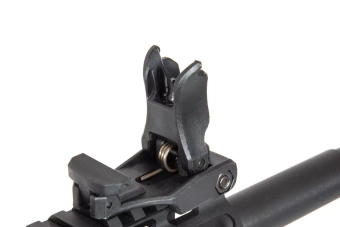

The replica is equipped with a 22 mm top RIS rail, RIS handguard and an adjustable stock. The top RIS rail features a flip-up rear sight that does not collide with optoelectronic aiming devices. Due to the extendable stock with an anti-slip stock pad, it is possible to adapt the replica’s length to the body type and preferences of the User. A standard flash hider is based on a 14 mm left-handed thread, which allows the attachment of a silencer in its place.
The set includes an S-MAG Hi-Cap magazine with a capacity of up to 380 BBs. S-MAG is an exclusive polymer magazine designed by Specna Arms. Noteworthy is the characteristic texture comprised of Specna Arms logos. S-mag facilitates a seamless feeding of BBs even at high ROF.
The carbine features a factory-fitted MOSFET X-ASR™ module by Polish GATE. It is an unprecedented cooperation between a Polish manufacturer and a factory known for its airsoft replicas. The highest-quality MOSFET X-ASR™ looks after the safety of the replica components, improves the trigger reaction and extends the lifetime of electronics and the battery. It will also enable diagnosing basic malfunctions inside the replica thanks to integrated status diodes.
The set does not include a battery or a charger.
The set includes:
- replica
- magazine
- additional M90 main spring
- Deans / Tamiya Small Adaptor
- User’s manual
- QC certificate
- GATE X-ASR™ diagnostics card
| Colour | Black |
Battery included NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state. | No |
| Bearings diameter [mm] | 8 |
| Blow Back Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting. | No |
| Product length [cm] | 87 |
| Product weight [g] | 2490 |
| Power supply | Electric |
| Dystrybutor Odpowiedzialny w UE | GF CORP Sp. Z o.o. Sp.k. ul. Jana Długosza 42-46 51-162 Wrocław Polska info@gfcorp.pl |
| Material | Metal Plastic |
| Muzzle velocity [FPS] It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second). 1 FPS = 0,3 m/s 1 J = 99 m/s 1 J = 326,7 FPS | 380 |
