G&G PCC45 carbine replica - New SMG from G&G

2021-03-04

After the great success of the ARP9 or PCC9 replicas, G&G turned its gaze towards a slightly larger pistol caliber, which is the popular forty-five, and this is how we got the PCC45. Replica is available here.

PCC is the abbreviation for pistol caliber carbine. The number 45, of course, is intended to refer to the caliber .45 ACP. The replica itself looks a bit like the LWRC UMP or SMG45, but when we look closer, we will see that its design has a minimum of common features with the above-mentioned models.

Unboxing of the replica - Modest but enough

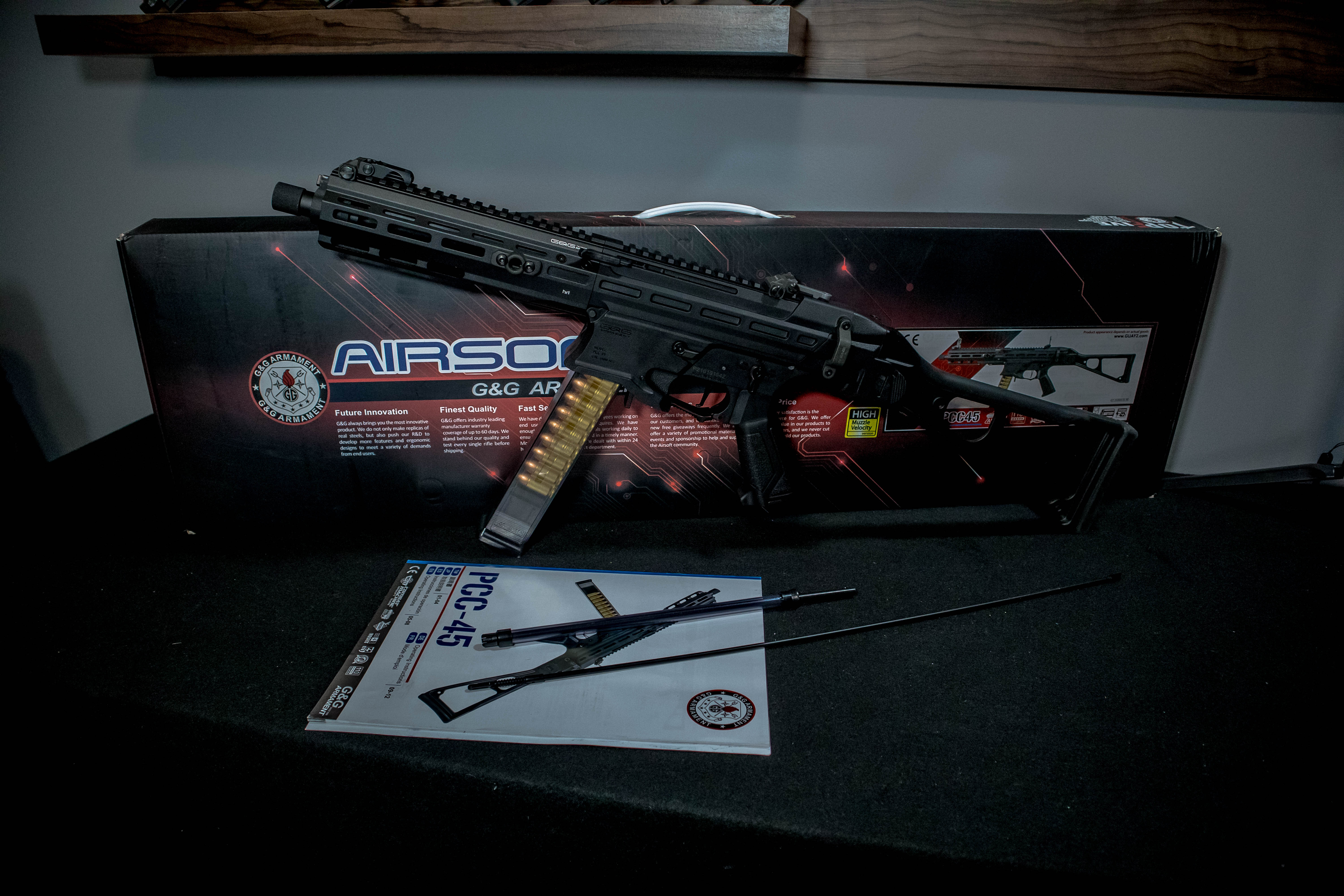

Box for G&G is, as always, colorful and full of information about this AEG replica. On the front, you will find information that this is a high muzzle velocity model, and it belongs to the Combat Machine line. The replica is equipped with ETU and MOSFET units. The box can be used to carry the replica due to the built-in handle.

Inside we will find:

  • PCC45 replica
  • user manual in several languages ​​along with a very useful replica overview
  • an old school speedloader
  • ramrod
  • the 110 BB midcap magazine

airsoft replica PCC45

Build quality – G&G standard

airsoft replica G&G PCC45

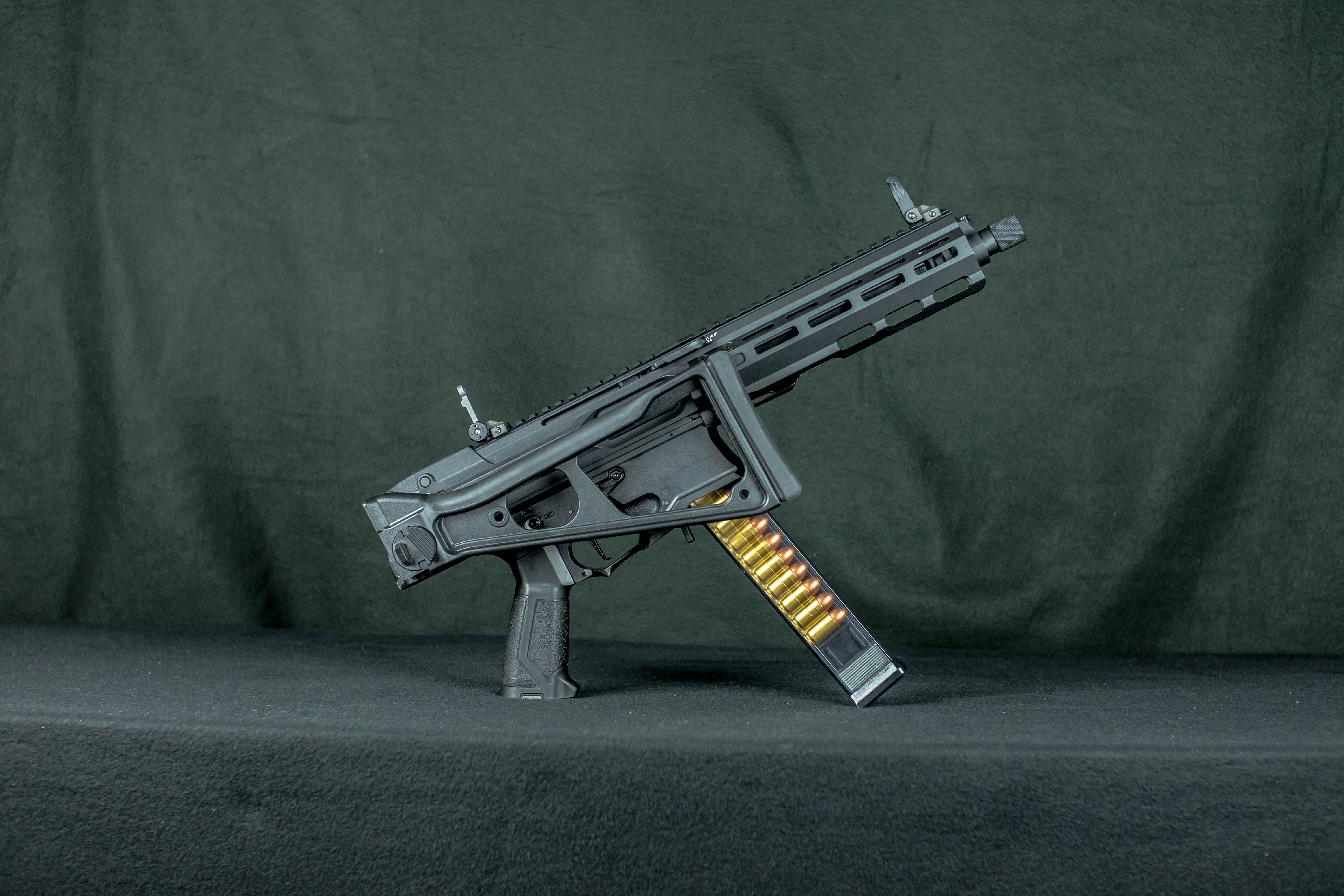

The replica measures 74cm with the unfolded stock and 50cm with the folded stock. The weight of the magazine is just over 2.5 kg.

folded stock PCC45 replica airsoft

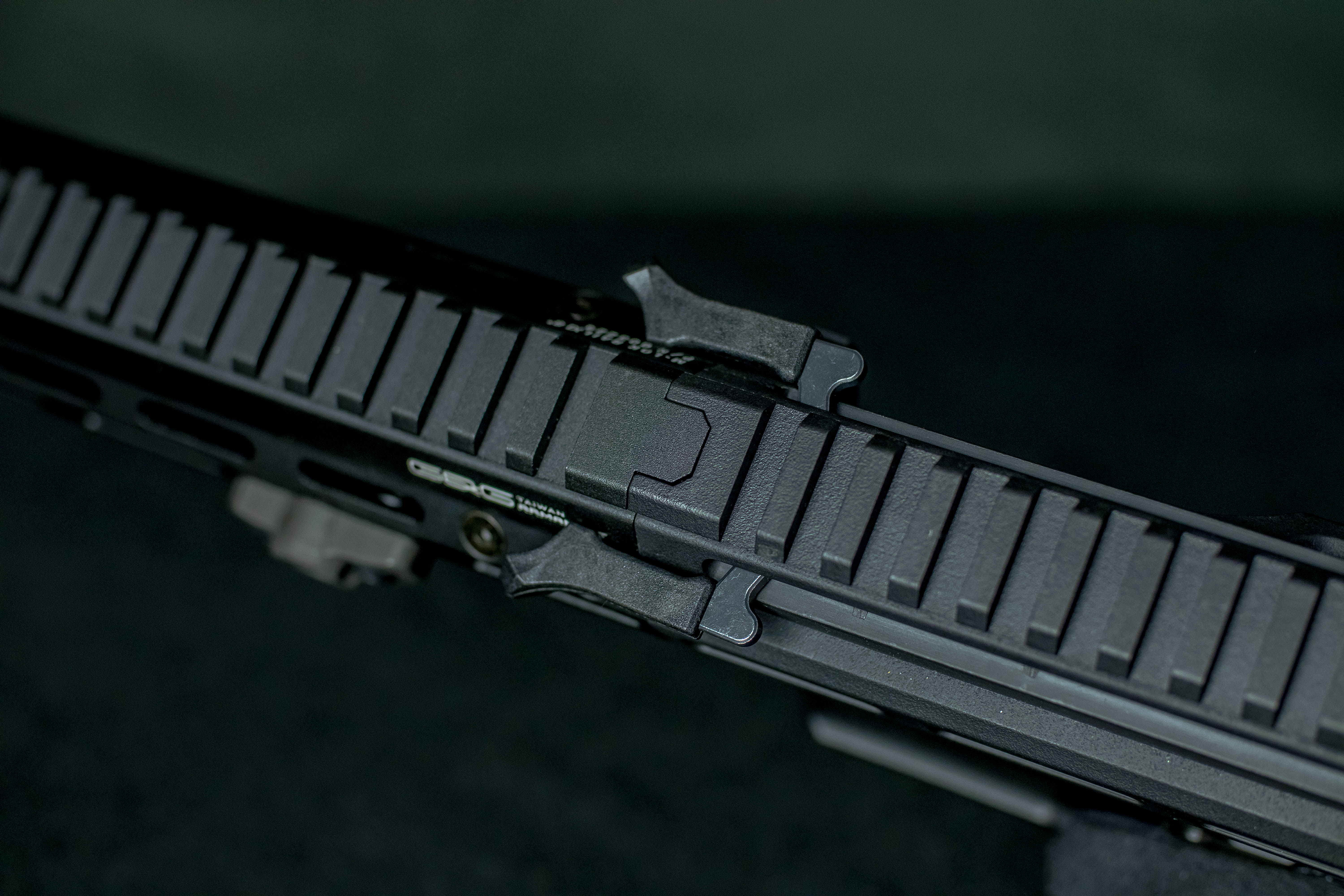

The replica is made mainly of the polymer. The materials used include elements such as the entire body, stock, or pistol grip. Despite the polymer construction, the replica fits very well. The stiffness of the structure is determined by such elements as a grove between the front and the body, which additionally stabilizes the connection.

handguard link with body

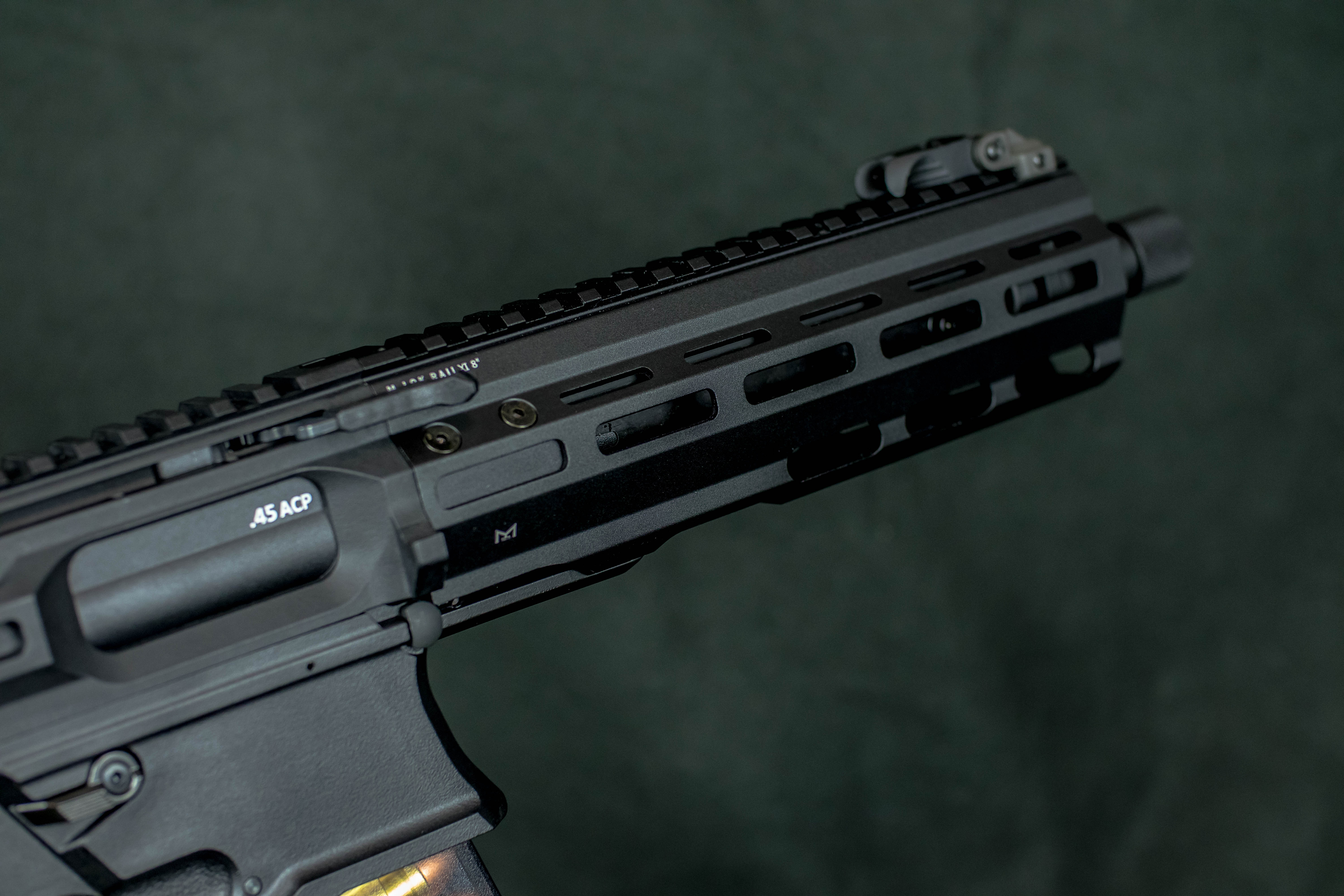

MLOK handguard is made of aluminum, and from metal, we have such elements as an external barrel, trigger, ambidextrous manipulators, folding sights, two spots for sling or pins and screws.

handguard of the PCC45 replica

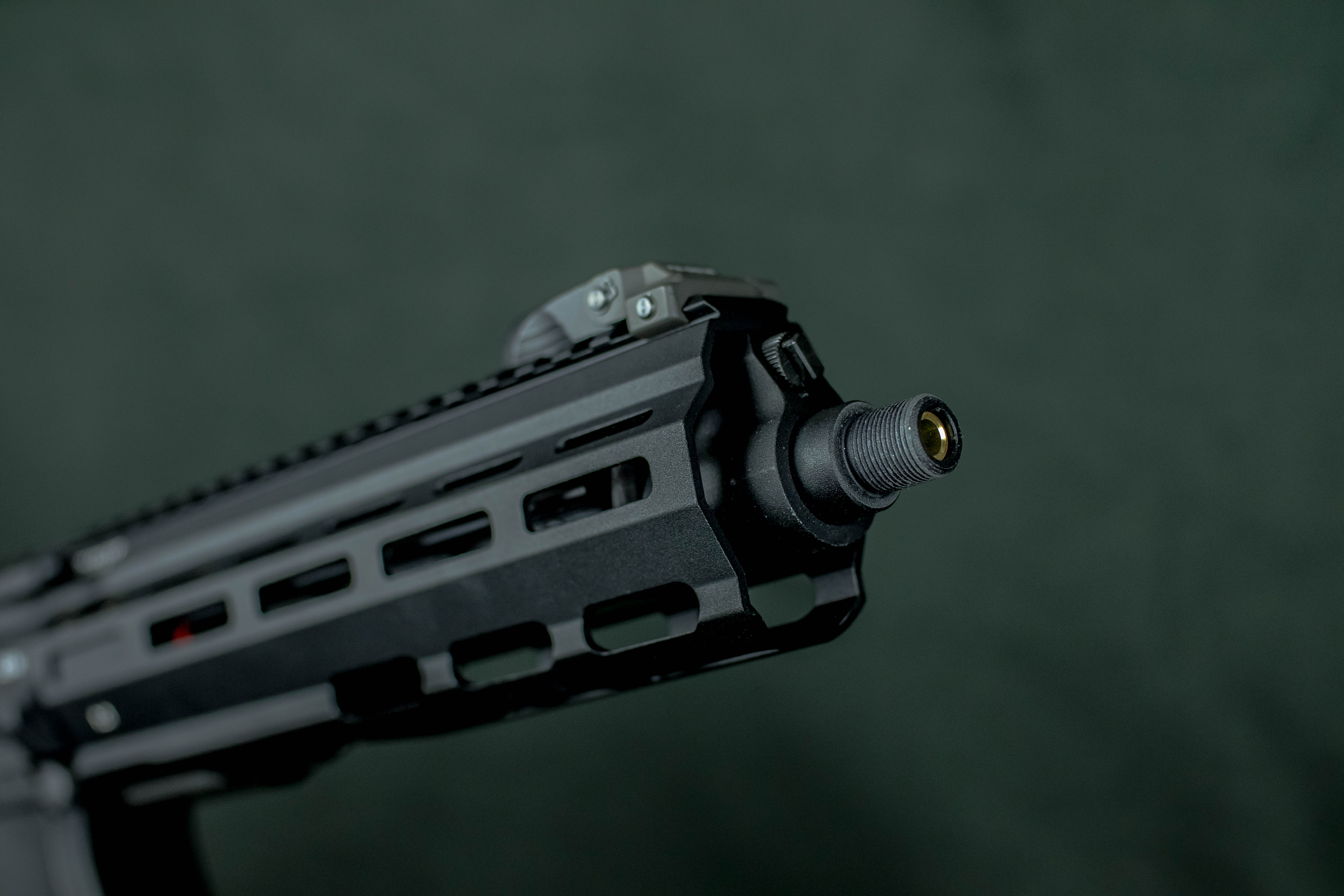

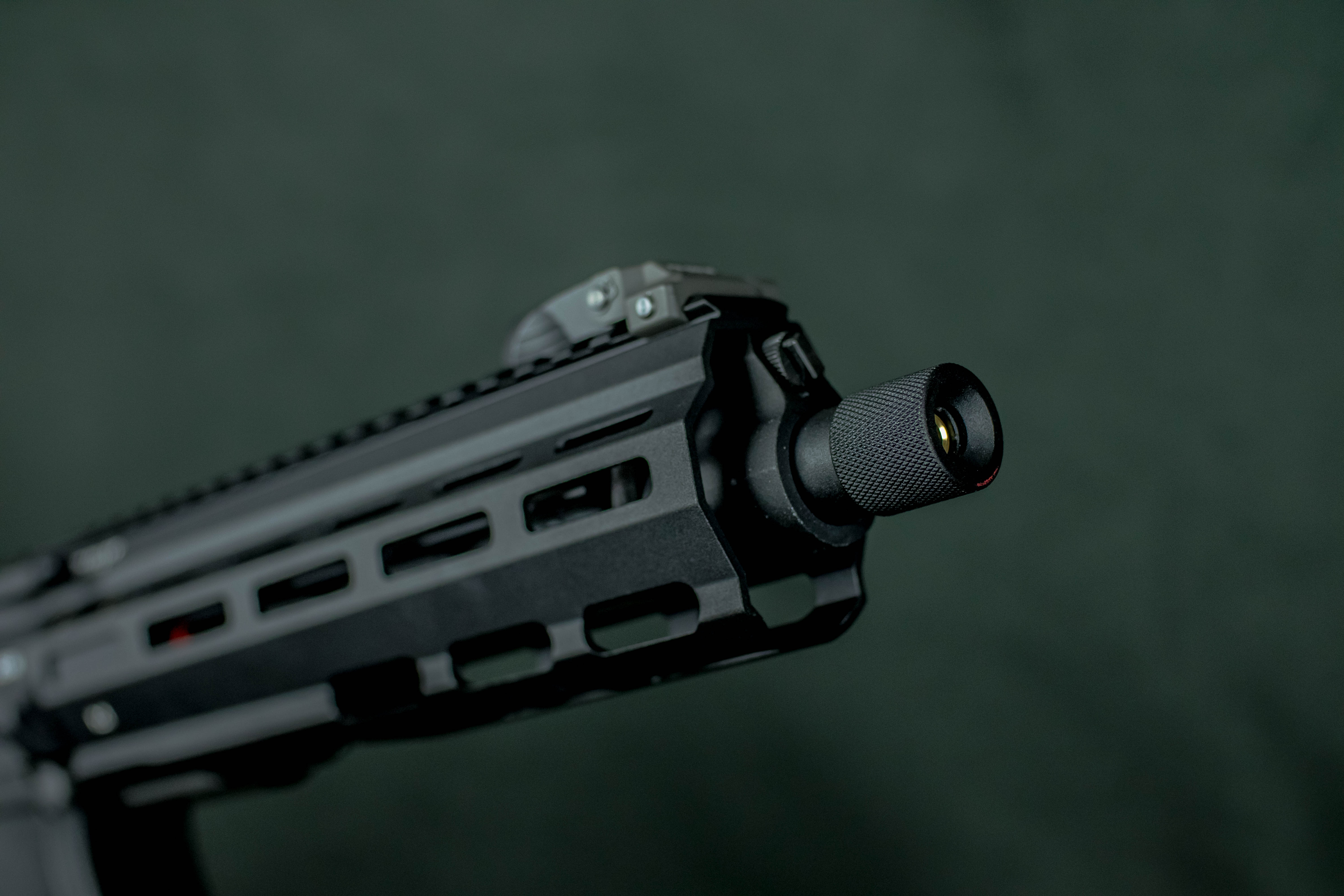

The barrel ends with a 14mm CCW thread hidden under a knurled cap, so mounting a silencer or barrel extension will not be a problem.

14mm CCW thread

thread for silencer

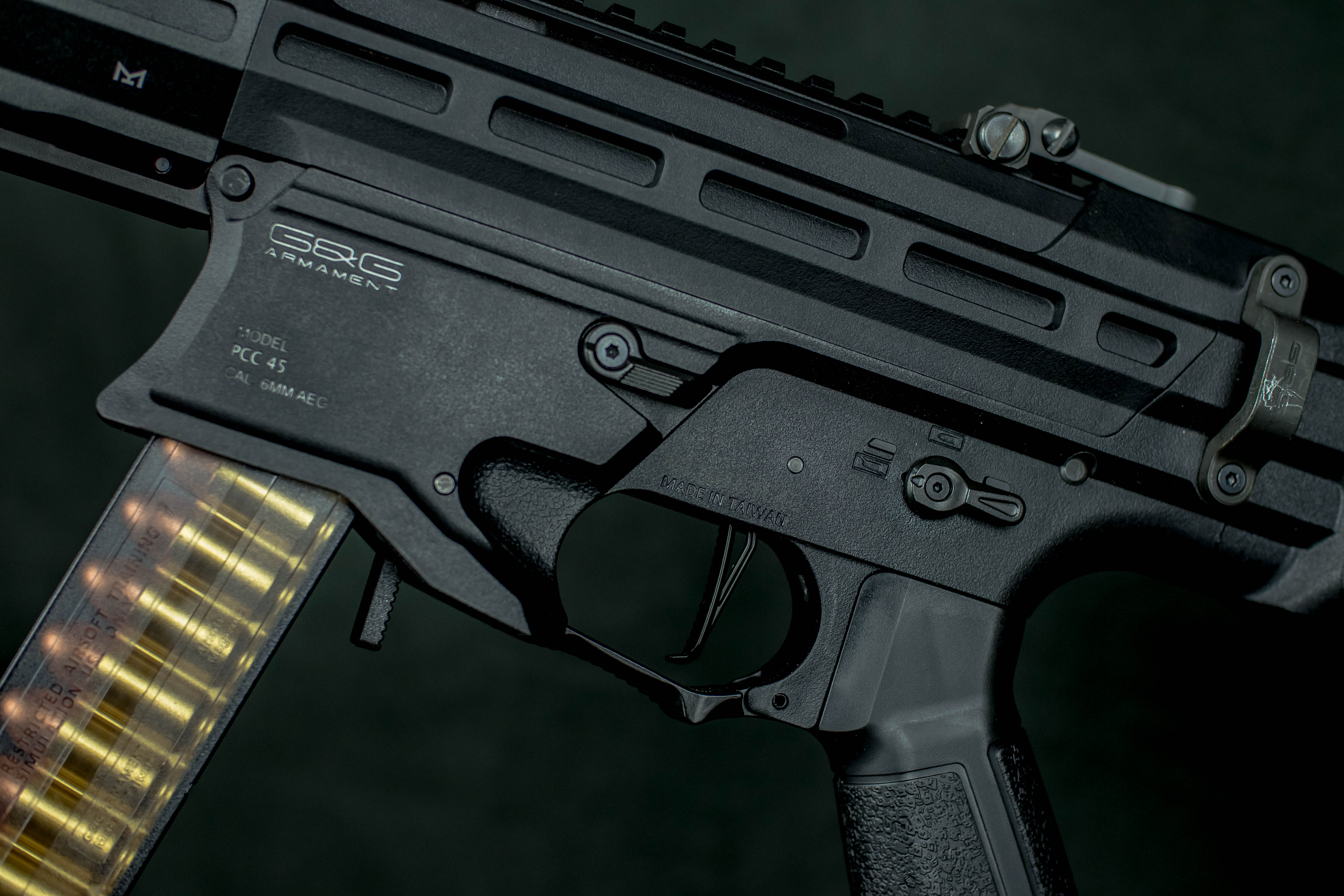

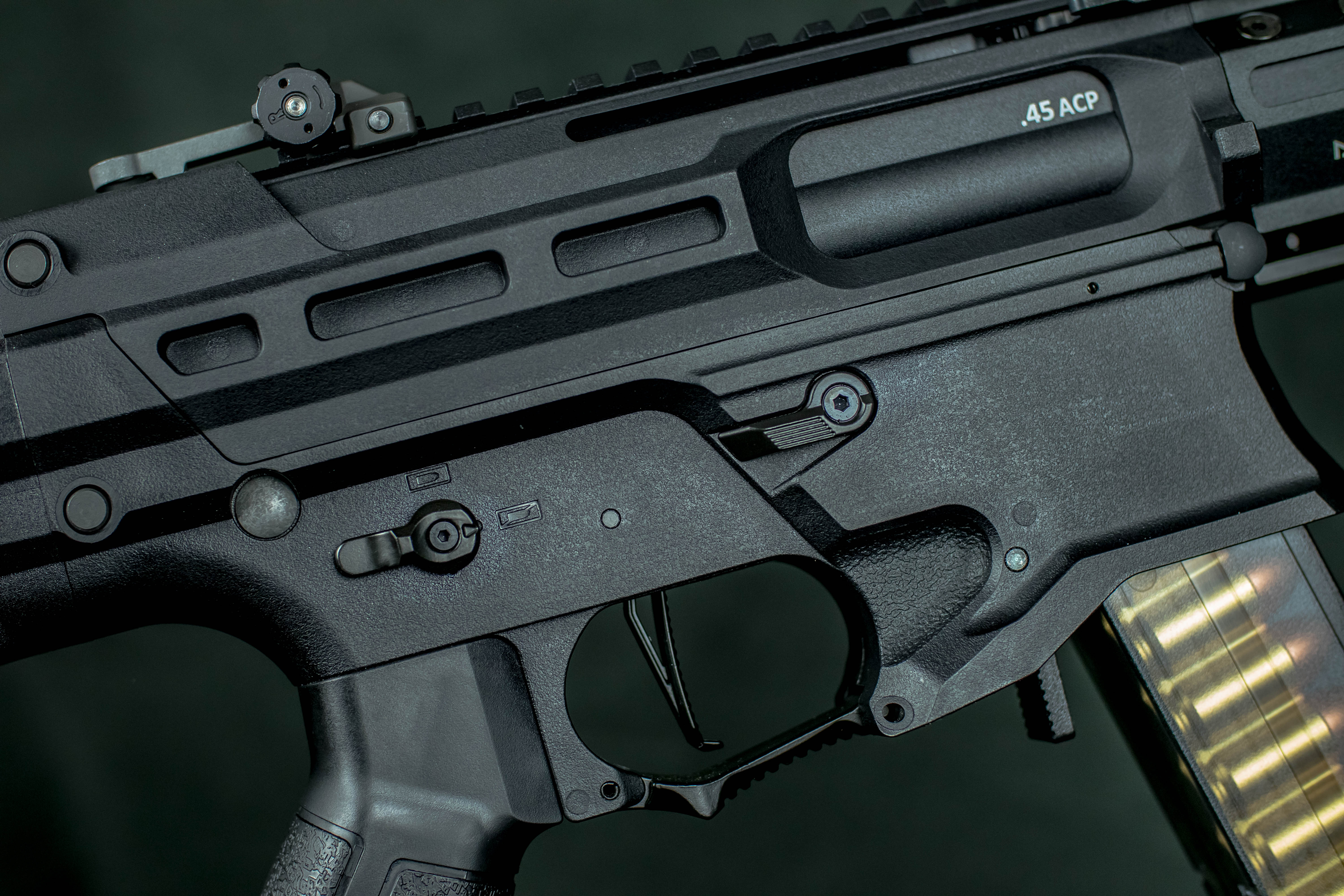

The replica has ambidextrous manipulators such as the fire selector, bolt release, or even a reloading handle, which should appeal to many users also the flat trigger is quite comfortable, and thanks to the ETU, it „breaks” at the very end while its reset is very short.

manipulators

fire selector in PCC45 replica

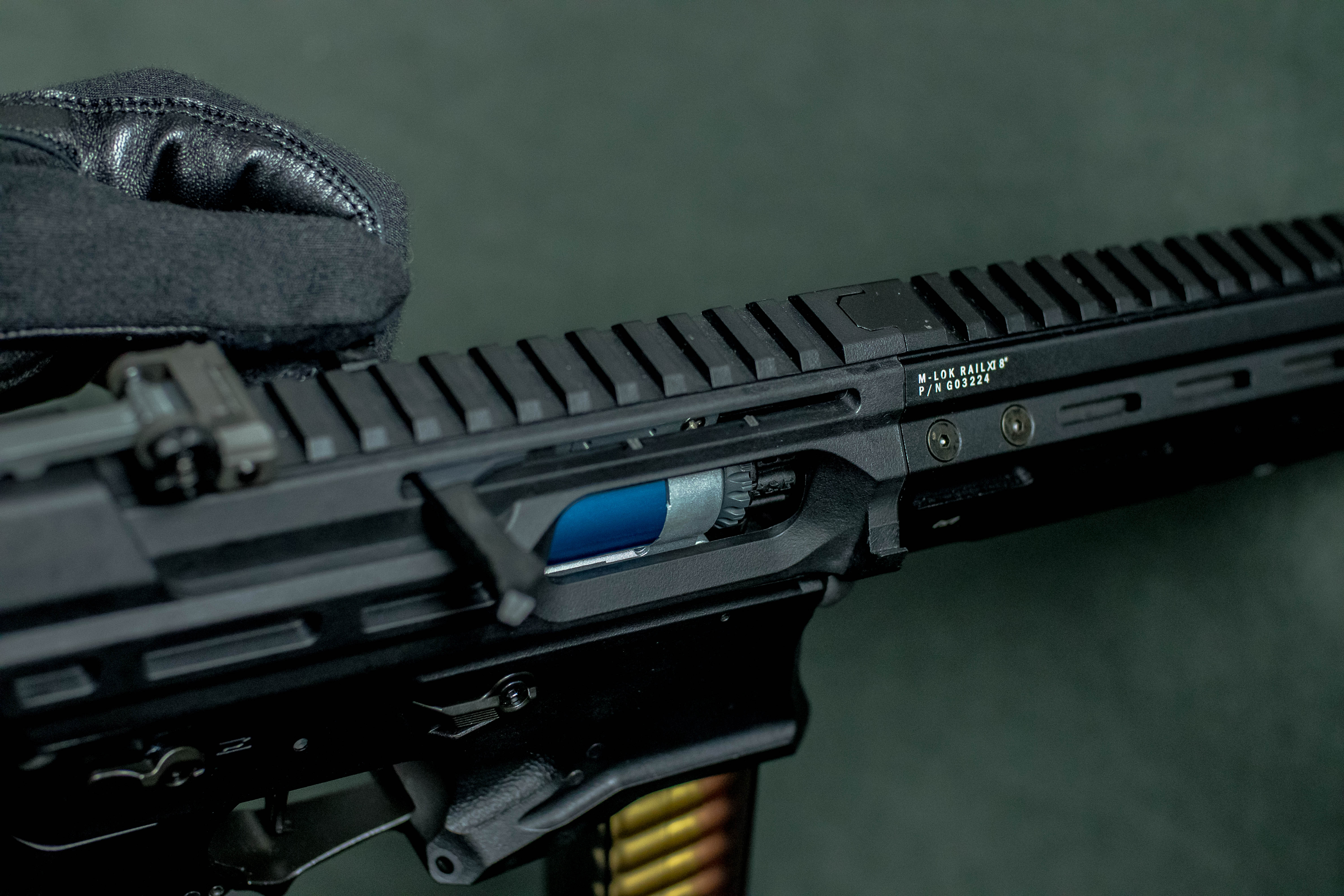

After you pull back the charging handle, the dummy bolt locks in the rear position and the rotary hop-up chamber appears to our eyes. By turning the knob up, we increase force, and by turning it down, we decrease it.

dummy bolt

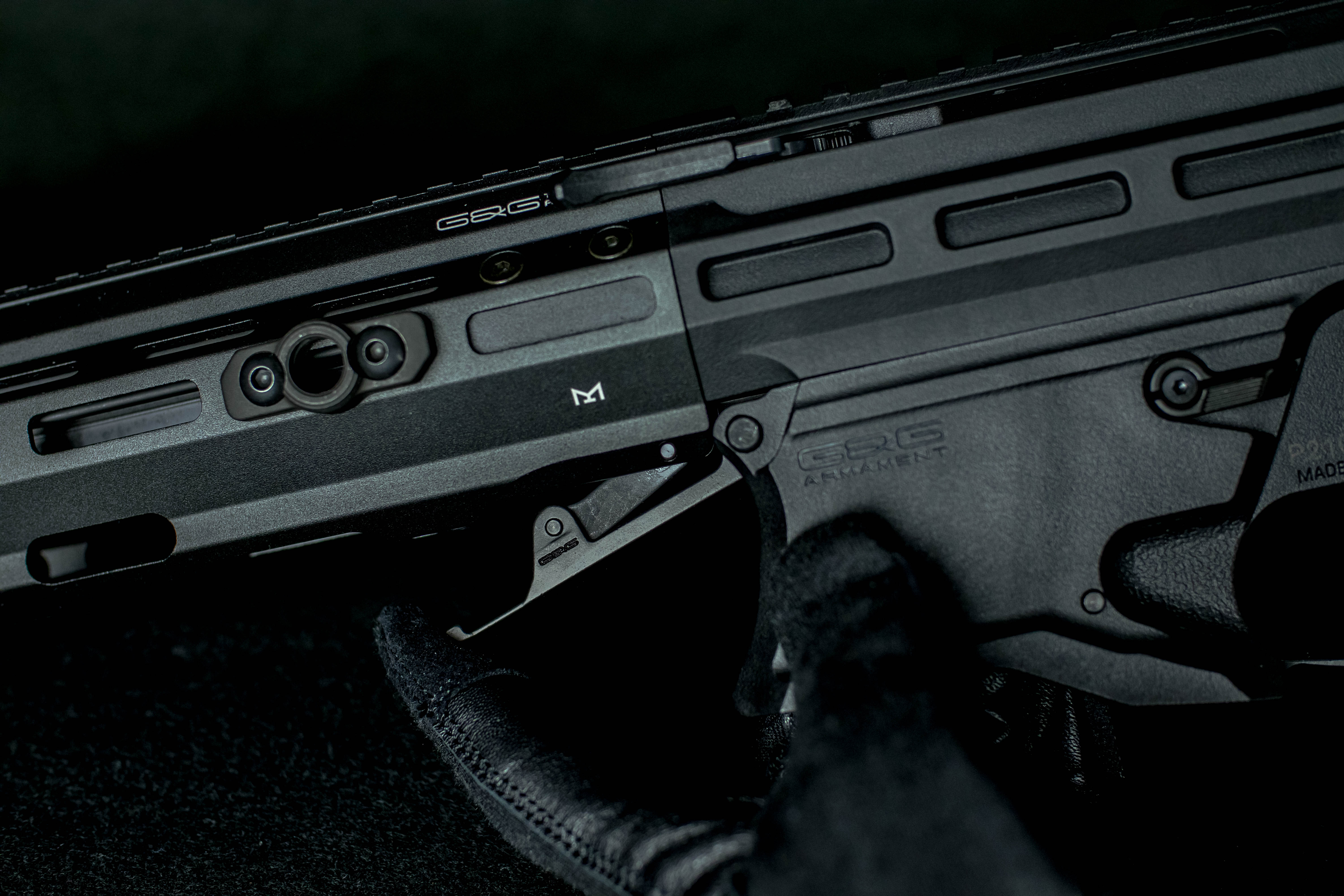

To remove the front, first unhook the visible lever, then you can slide the front forward.

removing handguard

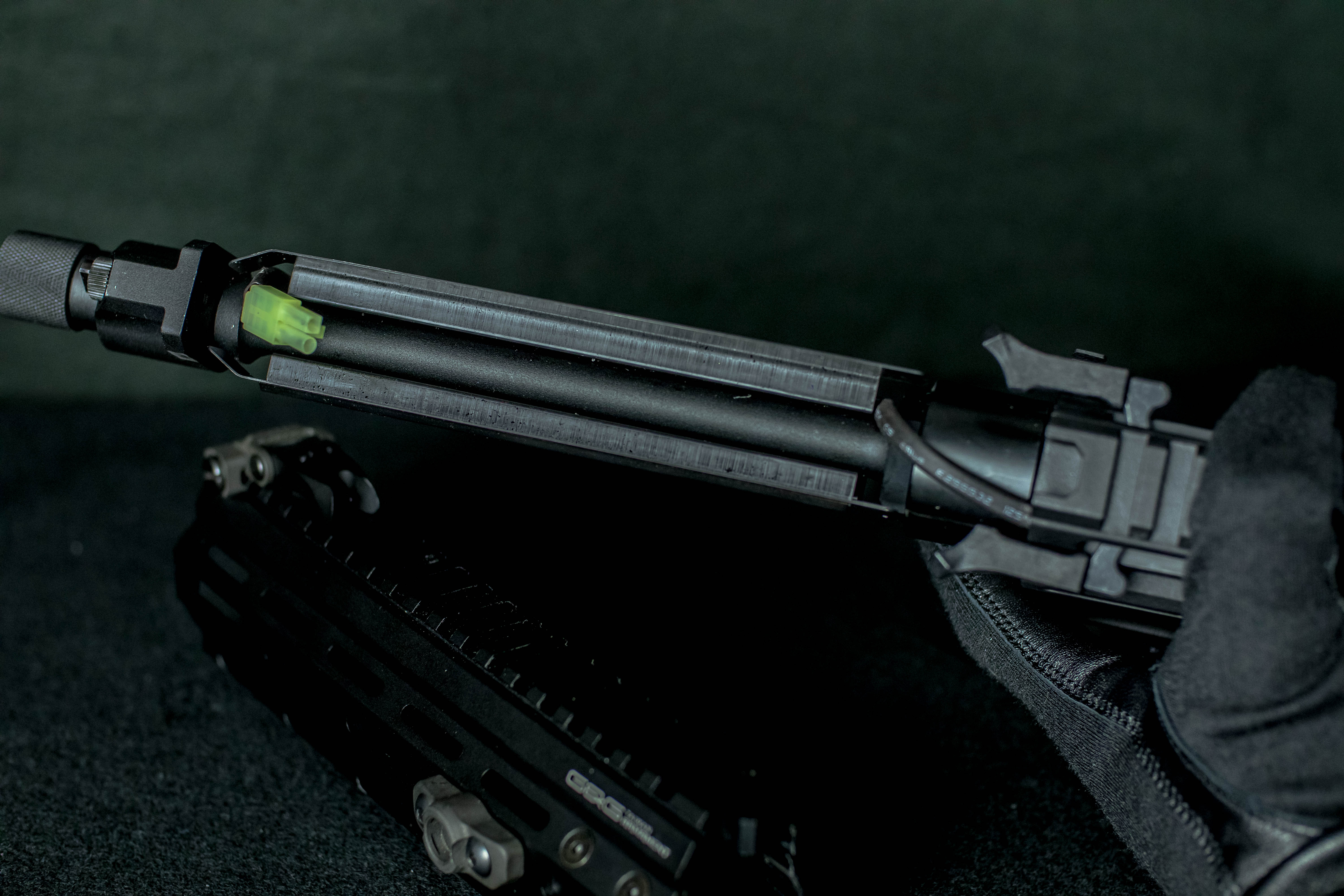

This gives us access to the prepared place for the battery. The wiring ends with a Tamiya plug. I was able to fit the Turnigy Nano-tech 11.1v 1000mAh pack.

access to battery

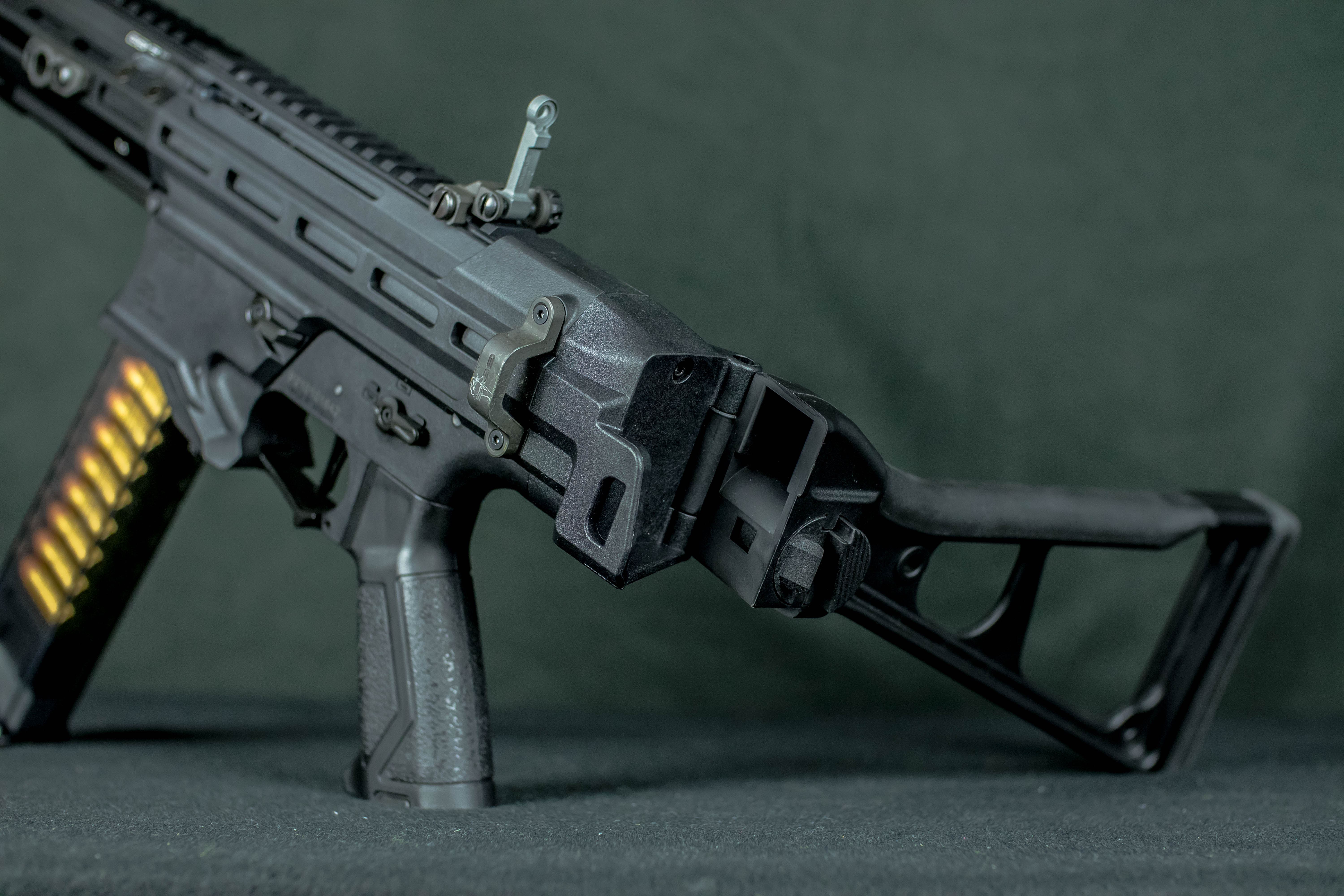

After pressing the button on the stock, you can fold it to the right side, where a hook is prepared for it so that it does not unfold.

opening the stock

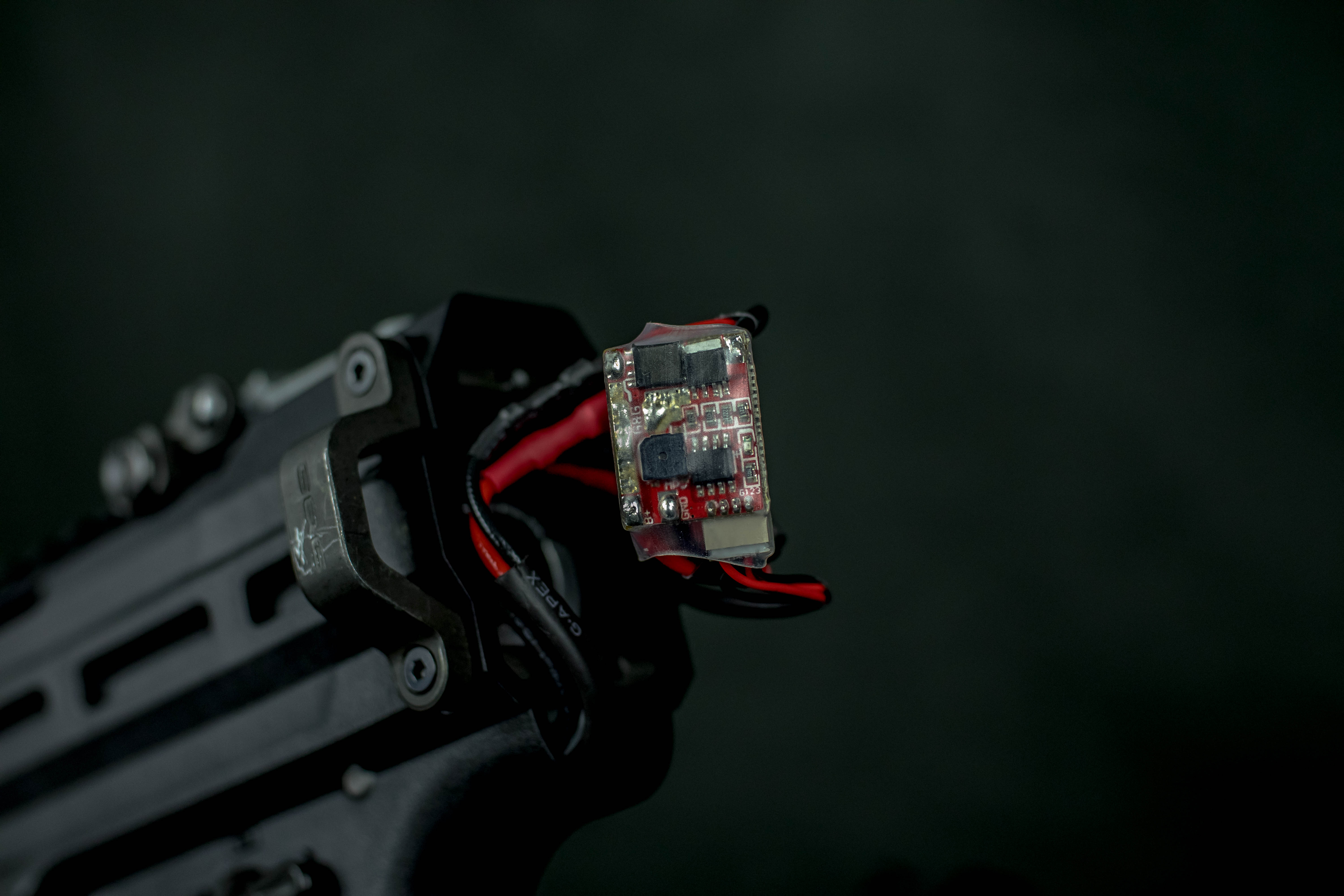

After disassembling the stock, which is held on two hexagonal screws, we have access to the 4th generation MOSFET system, which protects the battery from complete discharge and gives us the ability to set a three-shot burst instead of the full auto mode. To do this, just hold the trigger after shooting in semi mode until you hear a beep. In the same way, the auto mode is restored. After disconnecting the power supply, the replica also returns to the standard settings.

mosfet 4th generation

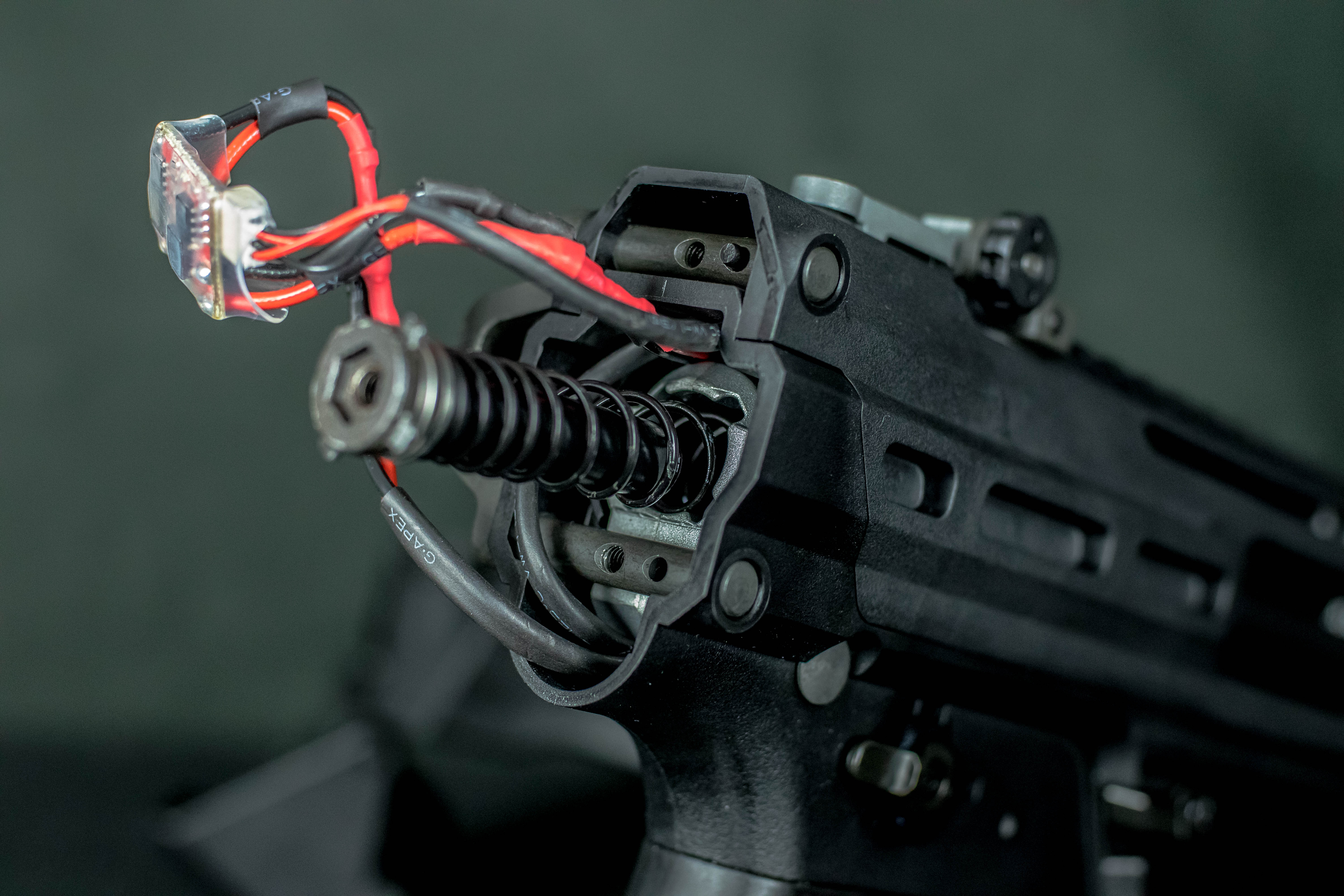

Here we also have access to the quick spring change system. After pressing and turning the guide, we can pull it out and change the spring to another.

spring change

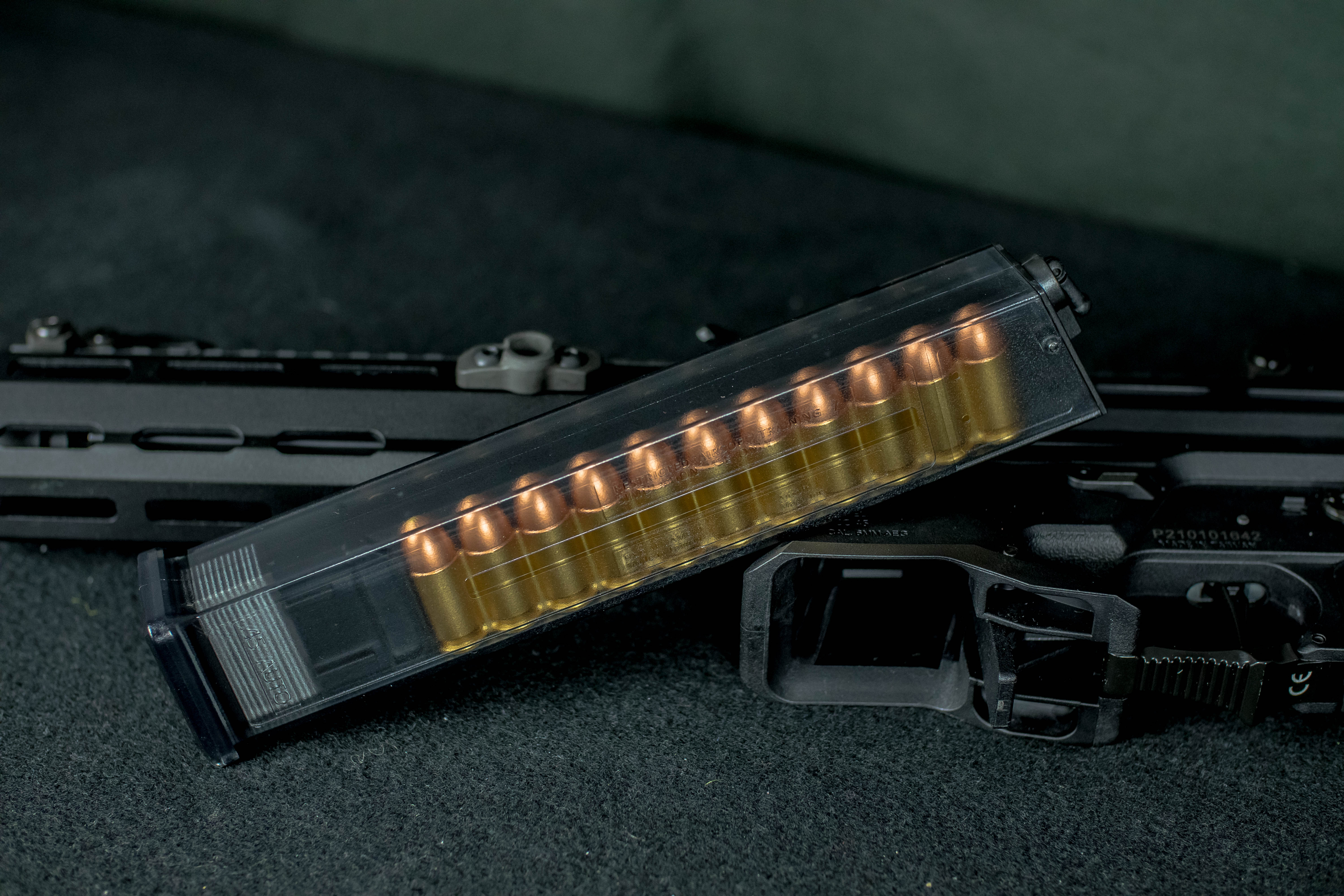

The magazine that we get in the set with the replica is a mid-cap holding 110 BBs. It has a transparent casing that hides dummy .45 bullets. It also has a long pusher that allows all bb’s to be fed. It is dedicated to this replica, and UMG45 magazines will not fit. The replica's magwell narrows towards the center, which makes attaching the magazine much easier. There is also a magazine release button here.

dummy airsoft magazine

Gearbox - the heart of the replica and the source of its performance

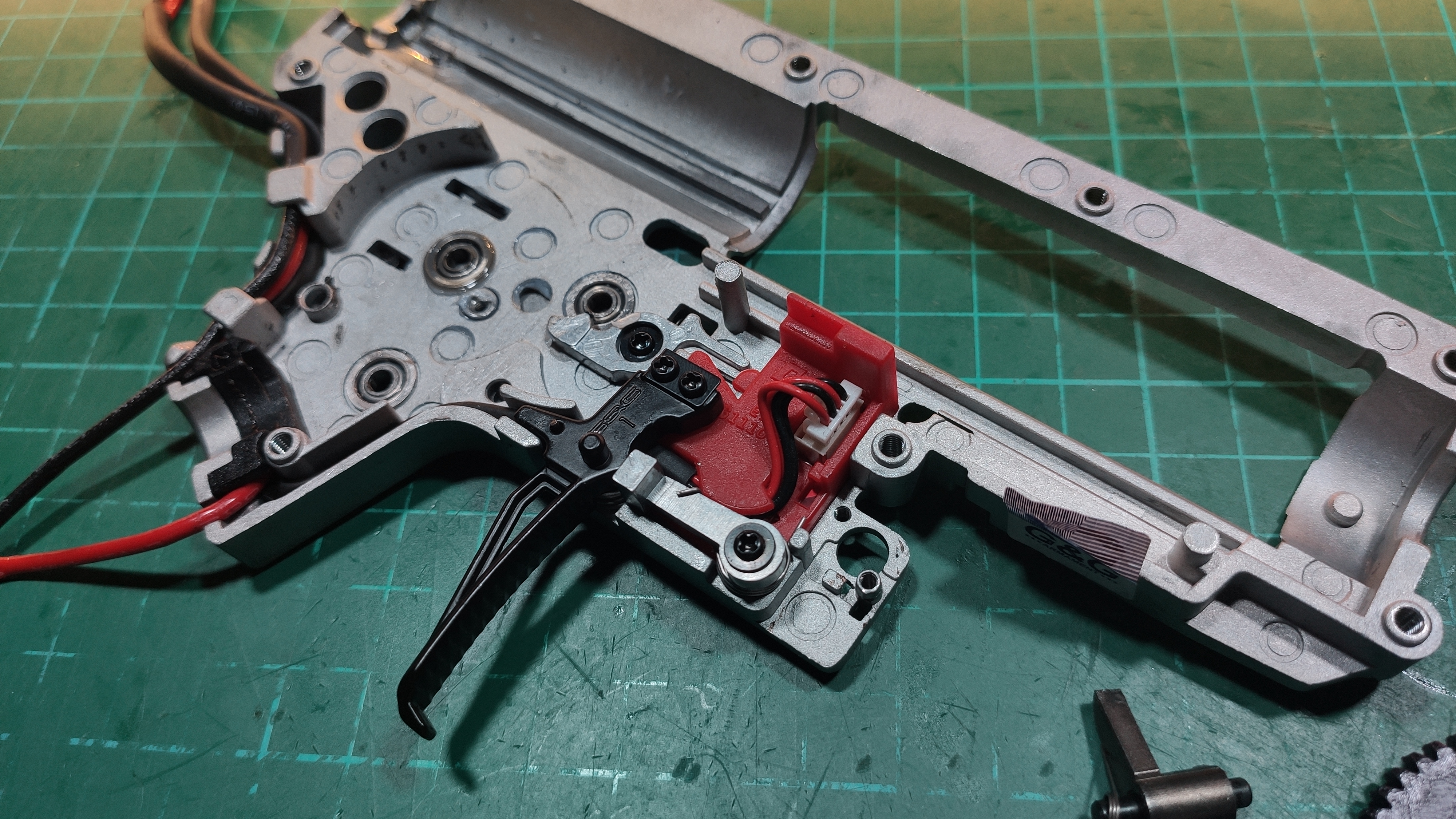

The heart of the replica is the proven G2 gearbox, which can be found in high-end models from G&G. The shell with visible reinforcements has an ETU system installed that replaces the classic contacts. The system is based on micro switches that are responsible for the operation of the trigger, cut-off lever, and even for the detection of the selector plate position. Thanks to their use, the trigger has a very short reset, and the MOSFET knows exactly how many shots have been fired, which is necessary for the operation of a three-round burst.

gearbox of the PCC45 replica

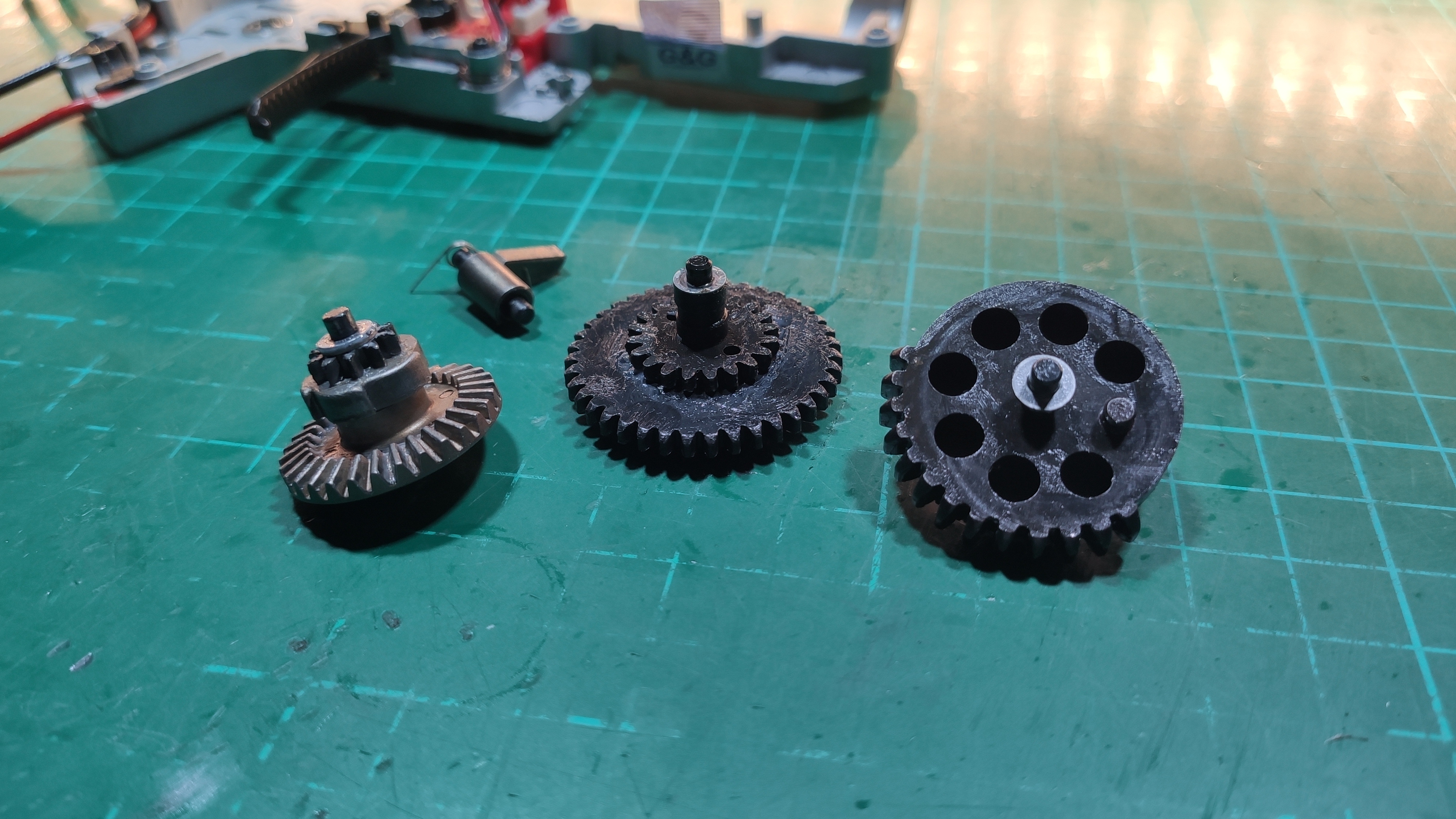

The replica features 18:1 gears with a short stroke, which means that instead of 15 teeth, the sector gear has only 13 teeth, thanks to which the reaction to the trigger and ROF are much better. The bevel gear itself has 5 anti-return teeth, and its design is to make the system work quieter.

set of gears

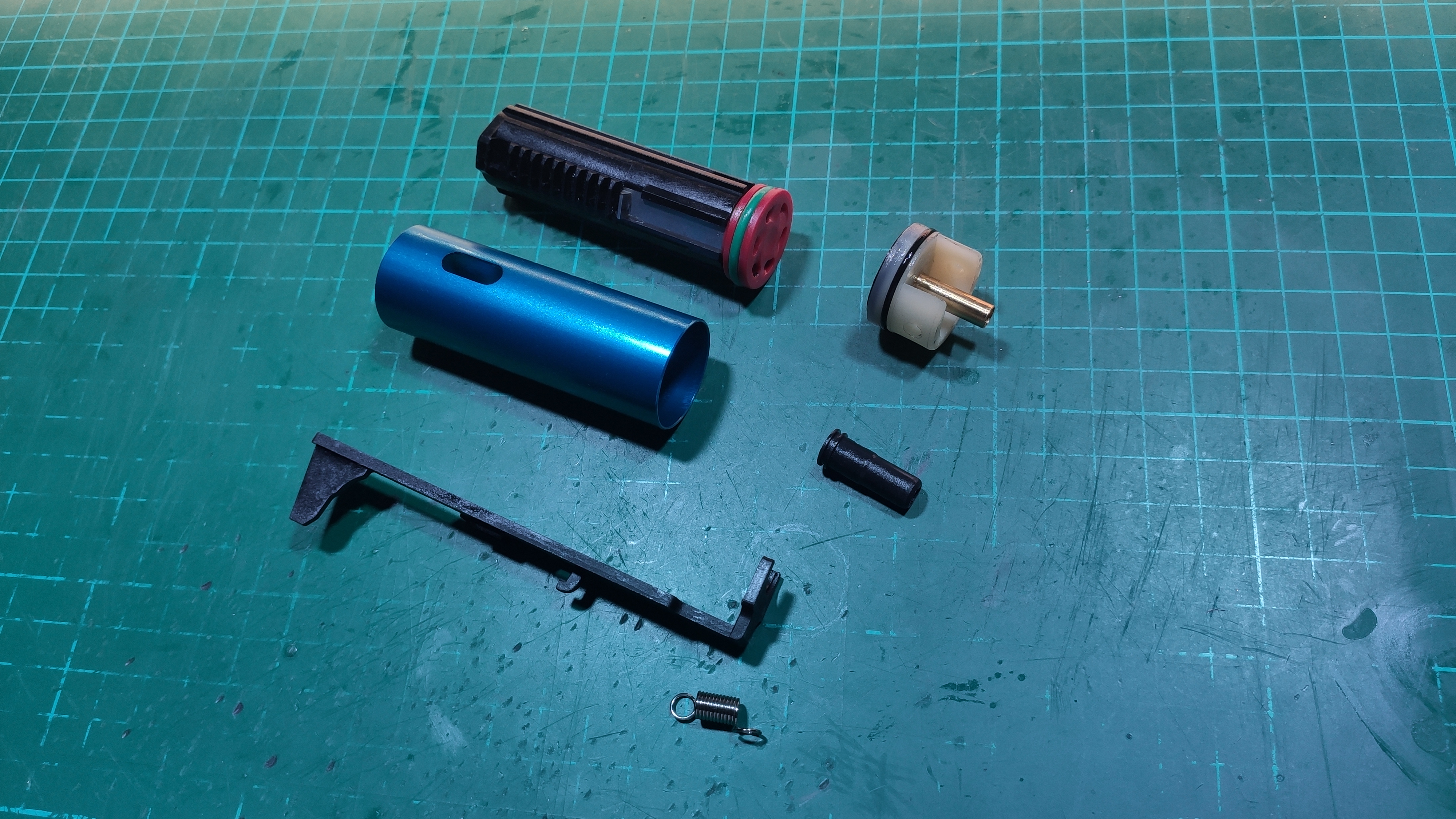

The pneumatic system in the replica consists of:

  • Polymer piston with 12 teeth, only the last one is metal. The piston has a polymer ventilated head, which, unfortunately, after one play already has traces of material fatigue at the ventilation holes.
  • The type two-cylinder is made of aluminum.
  • Polymer cylinder head with one O-ring. The head is quite loose in the cylinder, but it stays sealed.
  • A polymer nozzle with a length of ~ 21.40mm without an o-ring, which loses some air.
  • Dedicated tappet plate with a characteristic indentation.

The tightness of the entire system is unfortunately not the best. The set did not pass the syringe test.

pneumatic system of the PCC45 replica

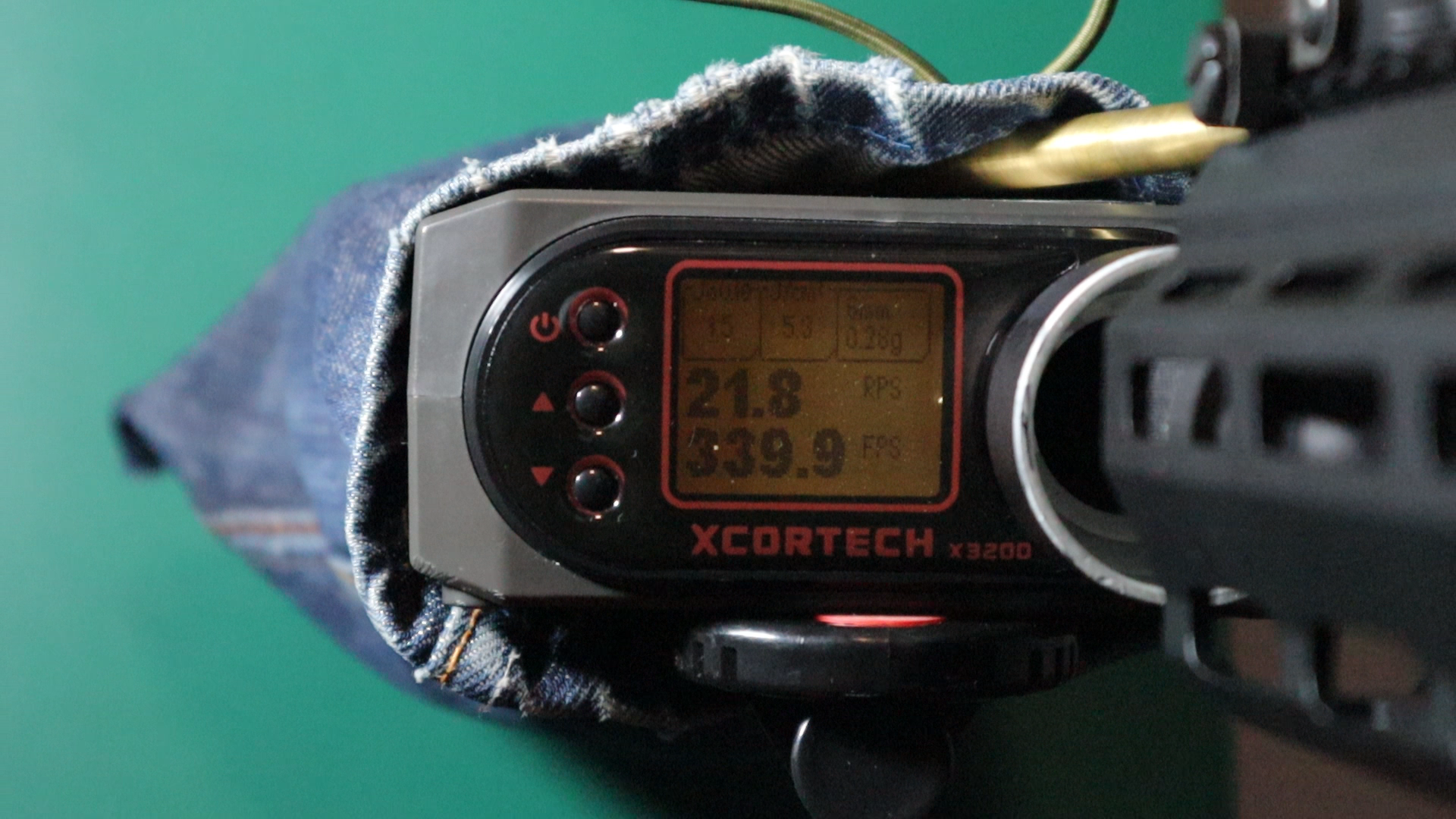

The High-Velocity replica with 0.28g BBs generates ~ 1.5J. With 11.1v 1000mAh battery rate of fire of ~ 22 BBs per second.

chrono test

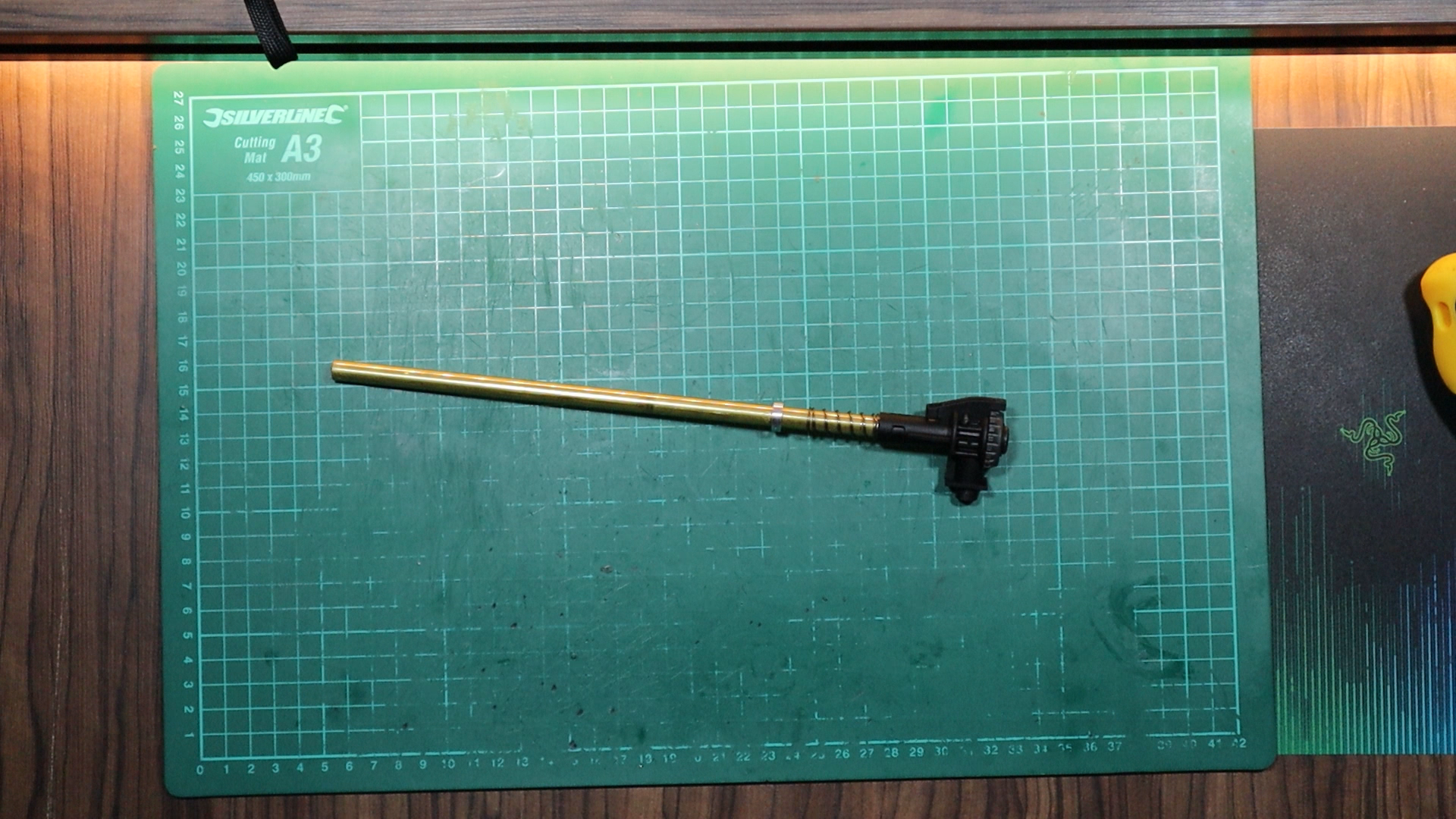

The 255mm barrel with a 6.04mm diameter is responsible for accuracy.

inner barrel

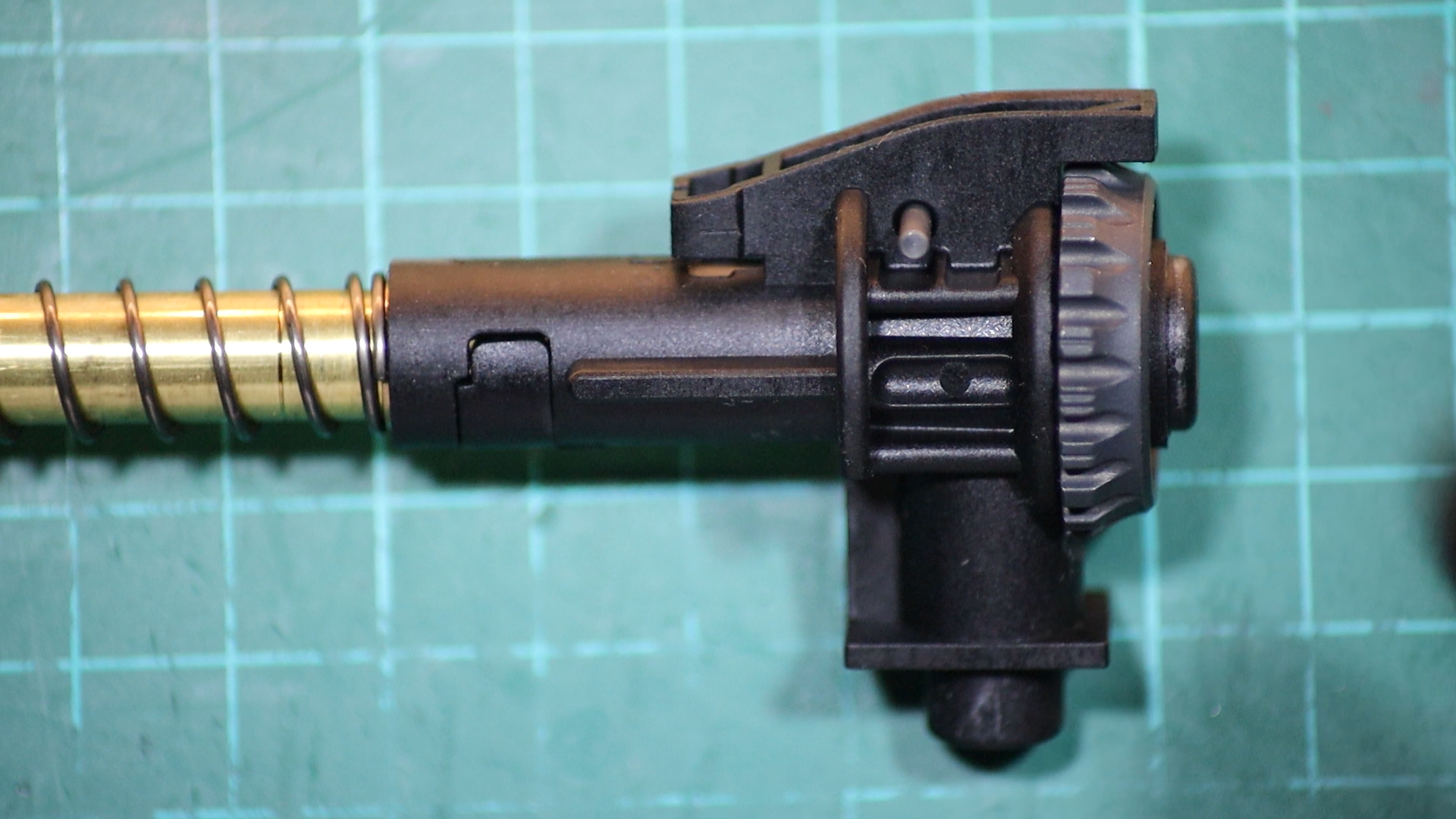

The rotary chamber mounted on it has a knob with clear settings.

rotary chamber

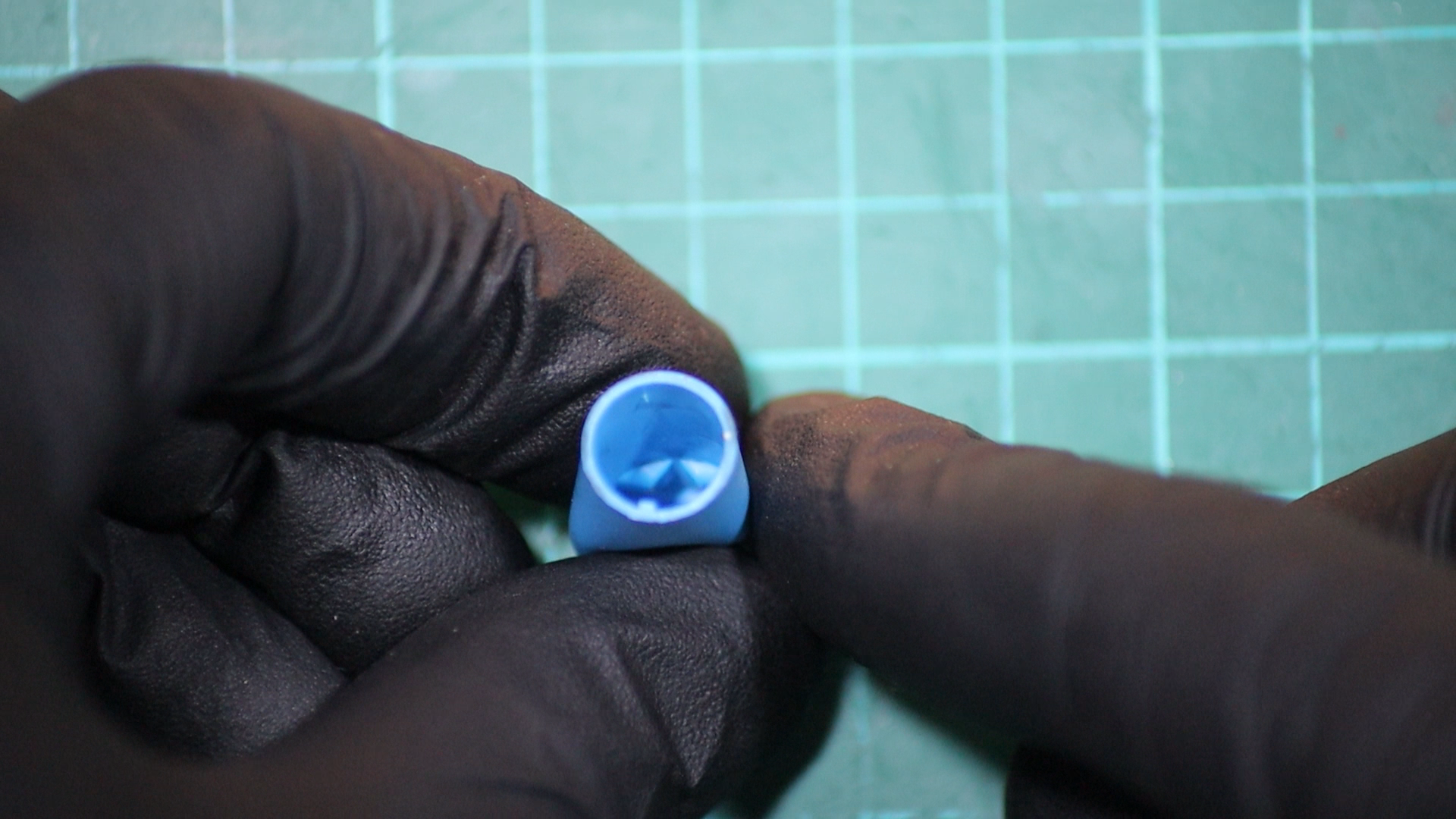

The bucking responsible or the spin is the well-known cold-resistant blue bucking with two tabs. The bucking has no problem with hoping the 0.28g BB up to a distance of 60m.

bucking

G&G PCC45 carbine replica - A word at the end

The PCC45 is a very original replica which design is associated with other constructions. Nevertheless, it is equipped with several original solutions. Thanks to the polymer construction, the replica is quite light and handy, despite its length of 74 cm. The ambidextrous manipulators add a lot to its ergonomics. The G2 gearbox, ETU system, and the 4th generation MOSFET make this product ready for cooperation with strong batteries, right from the box. They also guarantee a very nice reaction to the trigger. Built-in gears with a short-stroke provide a rate of fire of ~ 22 BBs per second. I am not only a fan of the pneumatics used, but the entire set of pneumatics also did not pass the syringe test, and the head itself has traces of wear after just one game. To defend it, let me add that we were playing -8 * C so, it could have influenced her appearance.

Nevertheless, the replica has no problem with generating ~ 1.5J with 0.28J BBs, and soft, cold-resistant rubber, and a rotating chamber with spinning them up to a distance of 60m. So I rate the entire replica highly, especially since I had the opportunity to try it in battle, and it worked very well. It gave me a lot of fun during that day. I'm sure it will accompany me in the fight more than once.

If you are looking for an original SMG replica that will not be the next MP5, I think the PCC45 might be a reasonable choice. You will find this replica in our offer!

Author:
Maniek 44
